Hyundai Sonata: Components and Components Location - MTS System - Body Electrical SystemHyundai Sonata: Components and Components Location

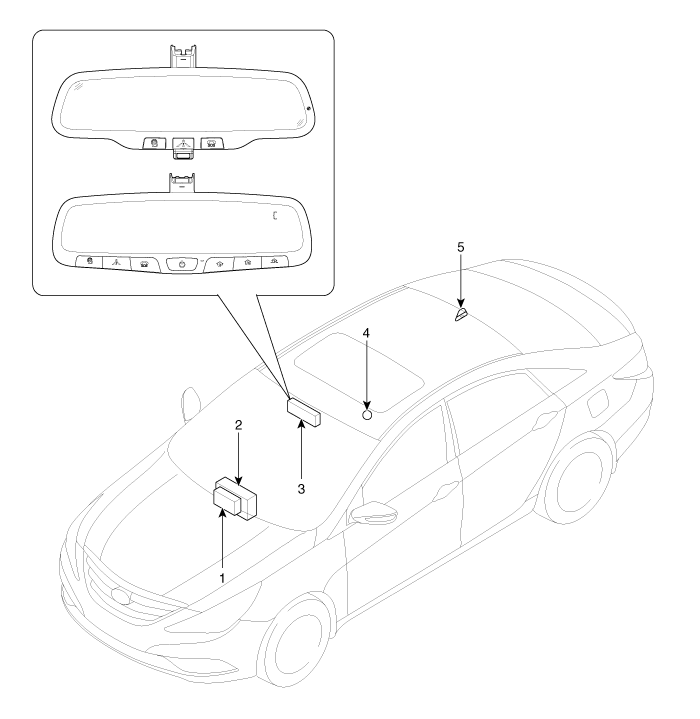

Components

1. Telemetics Unit (TMU)
2. AVN or Audio Head Unit
3. Room Mirror Switch (Blue Link button, Center button, SOS button)
 4. Mic
5. Roof Antenna (GPS+CDMA)


    Description and Operation
    Description Mobile Telemetics System (MTS) Hyundai motor companies are now faced with the task of shifting their paradigm from vehicle-centered services to customer valuecentered services, ...
