Hyundai Sonata: Components and Components Location - Windshield Wiper/Washer - Body Electrical SystemHyundai Sonata: Components and Components Location

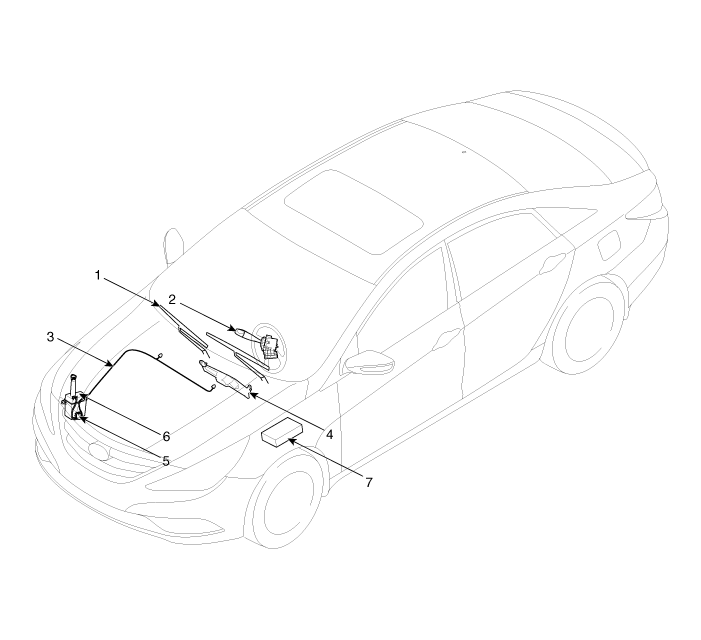

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose
4. Windshield wiper motor & linkage
5. Washer motor
6. Washer reservoir
7. Wiper relay (Engine room relay box)
