Hyundai Sonata: Engine Coolant Temperature Sensor (ECTS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: Engine Coolant Temperature Sensor (ECTS). Schematic Diagrams

Hyundai Sonata YF 2011-2014 Service Manual / Engine Control/Fuel System / Engine Control System / Engine Coolant Temperature Sensor (ECTS). Schematic Diagrams

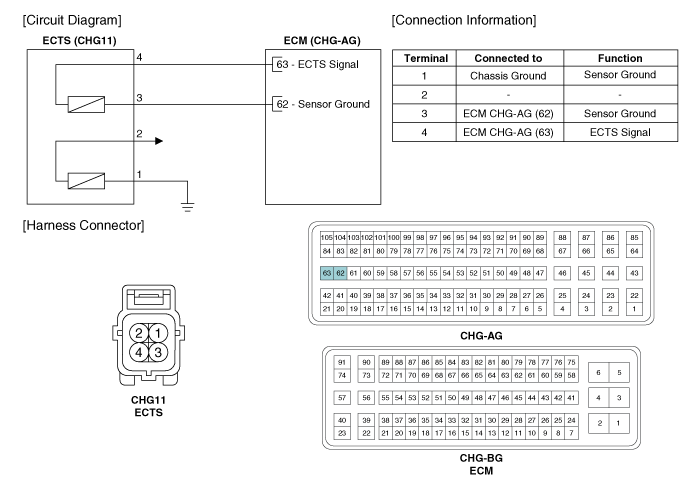

Circuit Diagram


    Engine Coolant Temperature Sensor (ECTS). Specifications
    Specification Temperature Resistance (kΩ) °C °F -40 -40 48.14 -20 -4 ...

    Engine Coolant Temperature Sensor (ECTS). Repair procedures
    Inspection 1. Turn the ignition switch OFF. 2. Remove the ECTS (Refer to "Removal"). 3. After immers ...
