Hyundai Sonata: Fan speed control

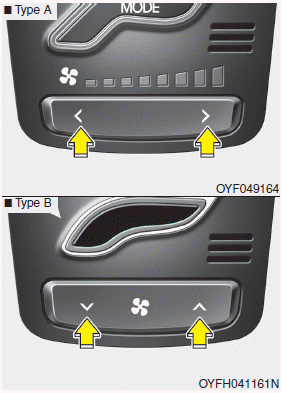

The fan speed can be set to the desired speed by pushing the fan speed control button.
To change the fan speed, press the right of the button (
)
for higher speed, or press the left of the button (
)
for lower speed. To turn the fan speed control off, press the OFF button.
Air intake control
Type A
Type B
This is used to select the outside (fresh) air position or recirculated air position.
To change the air intake control position, push the control button.
Recirculated air po ...
Air conditioning
Push the A/C button to turn the air conditioning system on (indicator light will
illuminate).
Push the button again to turn the air conditioning system off. ...
