Hyundai Sonata: Front Driveshaft. Components and Components Location
Component location
|
1. Driveshaft(LH) 2. Circlip 3. Transaxle |
3. Circlip 4. Driveshaft(RH) |
|

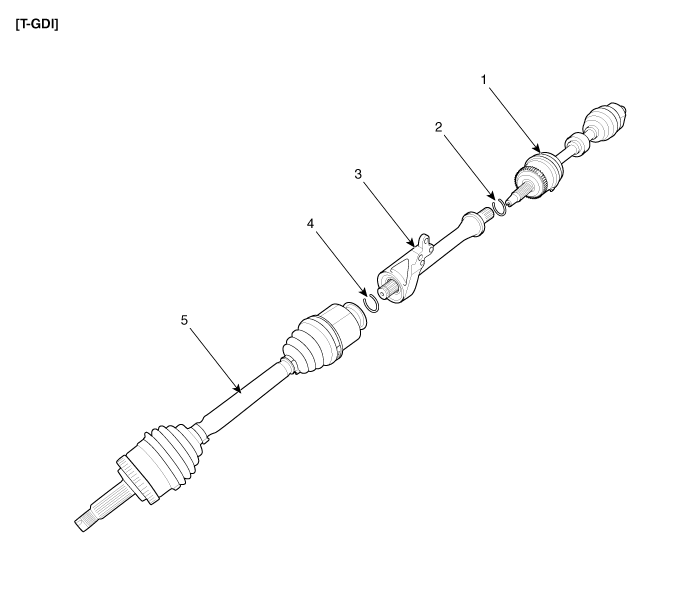

1. Driveshaft (LH) 2. Circlip 3. Inner shaft bearing bracket assembly |
4. Circlip 5. Driveshaft (RH) |
Components
|

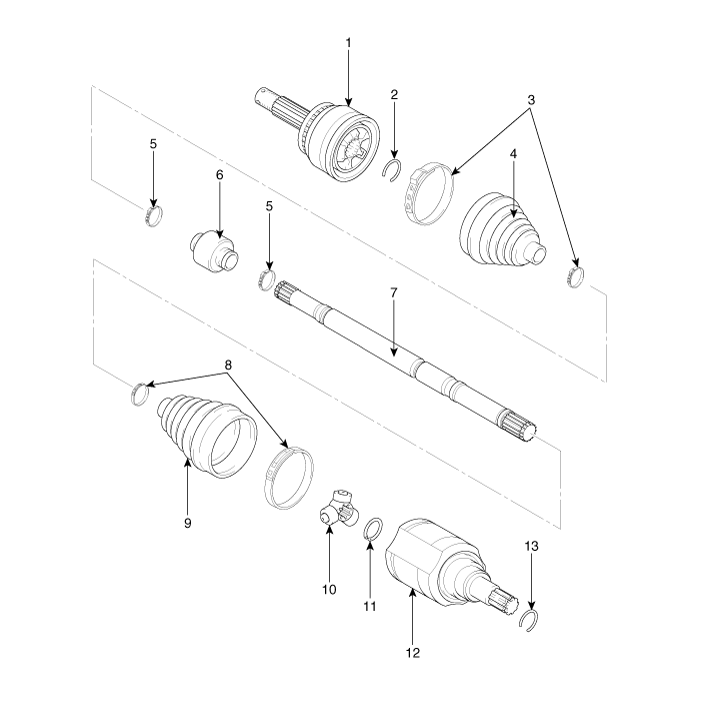

1. BJ Assembly 2. Clip 3. BJ Boot Bend 4. BJ Boot |
5. Dynamic Damper Bend 6. Dynamic Damper 7. Shaft 8. TJ Boot Bend |
9. TJ Boot 10. Spider Assembly 11. Clip 12. TJ Case |
13.Clip |
|

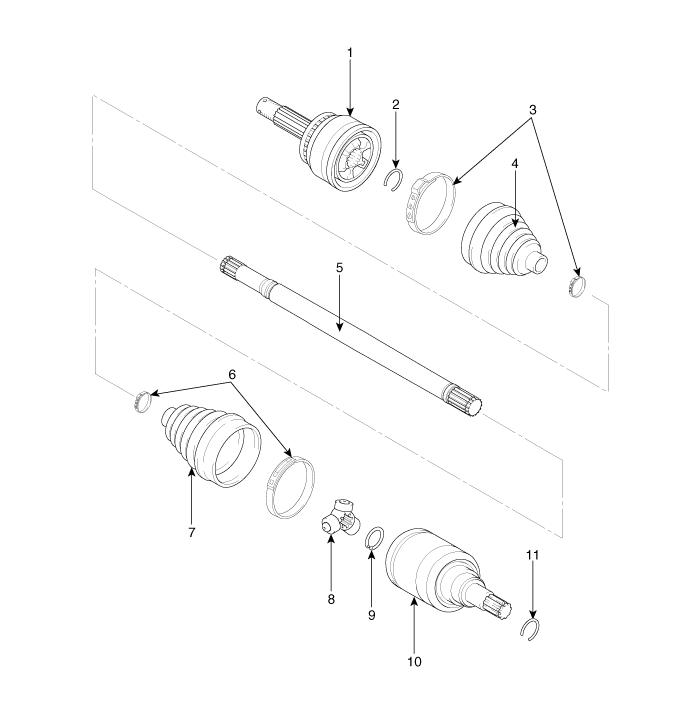

1. BJ Assembly 2. Clip 3. BJ Boot Bend 4. BJ Boot |
5. Shaft 6. TJ Boot Bed 7. TJ Boot 8. Spider Assembly |
9. Clip 10. TJ Case 11. Clip |
|

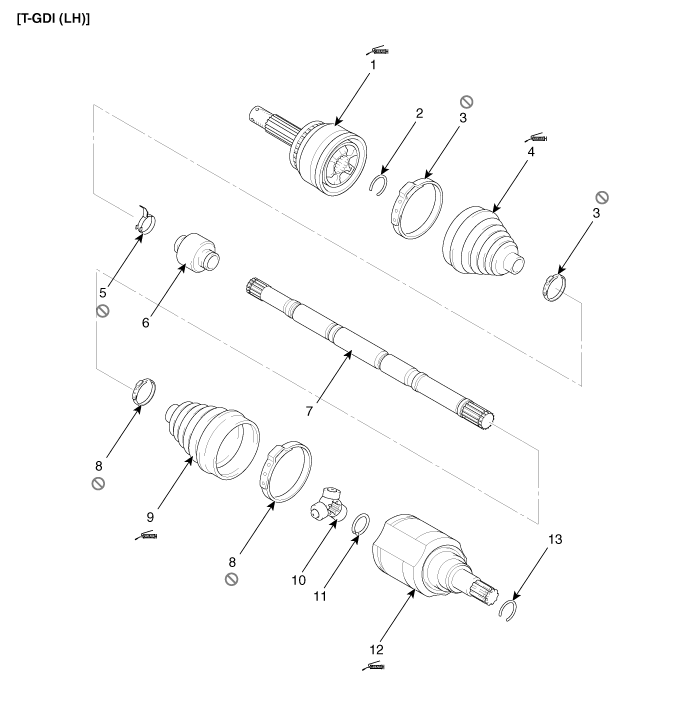

1. BJ Assembly 2. Clip 3. BJ Boot Band 4. BJ Boot |
5. Dynamic Damper Band 6. Dynamic Damper 7. Shaft 8. UTJ Boot Band |
9. UTJ Boot 10. Spider Assembly 11. Clip 12. UTJ Case |
13.Clip |
|

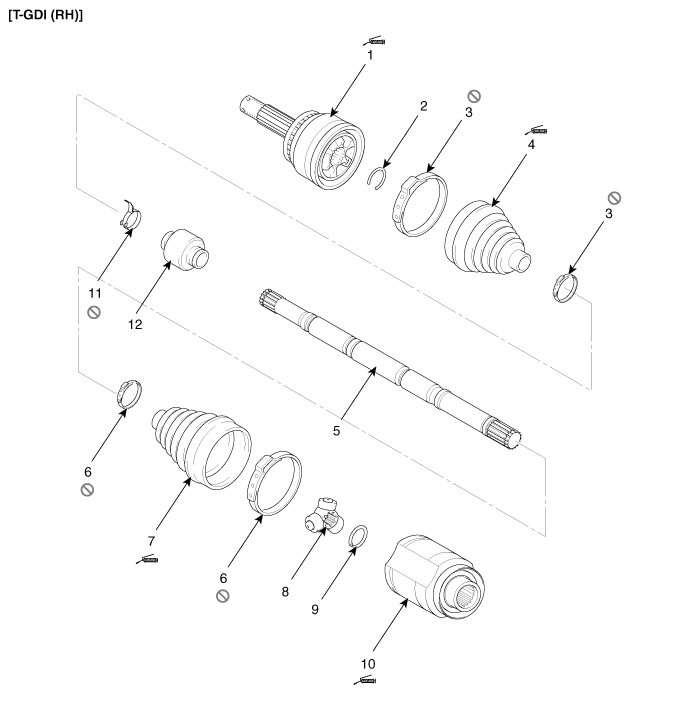

1. BJ Assembly 2. Clip 3. BJ Boot Band 4. BJ Boot |
5. Shaft 6. UTJ Boot Band 7. UTJ Boot 8. Spider Assembly |
9. Clip 10. UTJ Case 11. Dynamic Damper Band 12. Dynamic Damper |
Front Driveshaft. Repair procedures - Revised
Replacement
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.
Remove the front wheel and ...
