Hyundai Sonata: Front Hub / Knuckle. Components and Components Location - Revised
Components
|
1. Split pin 2. Castle nut 3. Brake disc 4. Hub 5. Wheel bearing |
6. Snap ring 7. Dust cover 8. Knuckle 9. Drive shaft |
Components
|

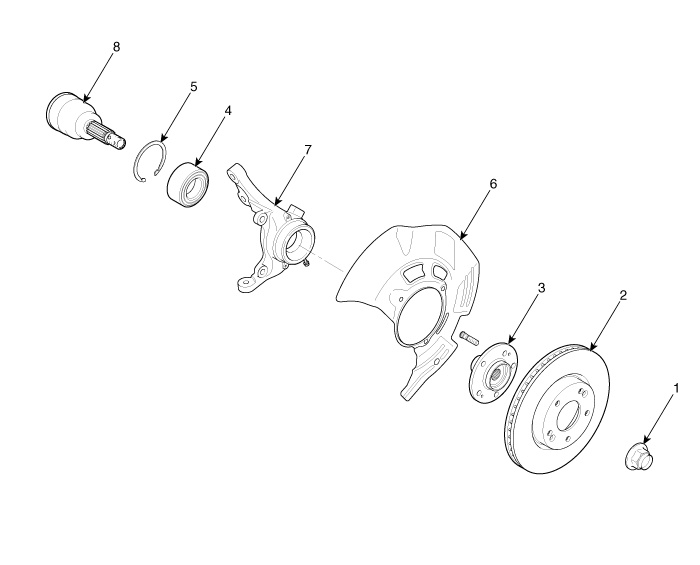

1. Coking nut 2. Brake disc 3. Hub 4. Wheel bearing |
5. Snap ring 6. Dust cover 7. Knuckle 8. Drive shaft |
Front Hub / Knuckle. Repair procedures - Revised
Replacement
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.
Remove the front wheel an ...
