Component

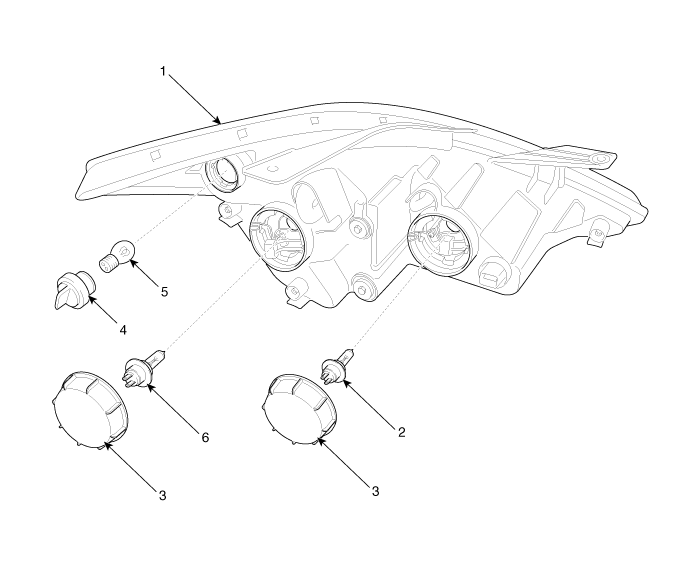

1. Head lamp assembly lens & housing
2. Head lamp (High) lamp
3. Dust cap

 4. Socket
5. Turn signal/ Position lamp
6. Head lamp (Low) lamp


    Components and Components Location
    Component Location 1. Head lamp (Low) 2. Head lamp (High) 3. Front fog lamp 4. Turn signal/ Position lamp 5. Tail lamp 6. High mounted stop lamp 7. Tail lamp/Stop ...

    Head Lamps. Repair procedures
    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front bumper. (Refer to the BD group - "Front bumper") ...
