Hyundai Sonata: Heated Oxygen Sensor (HO2S). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: Heated Oxygen Sensor (HO2S). Schematic Diagrams

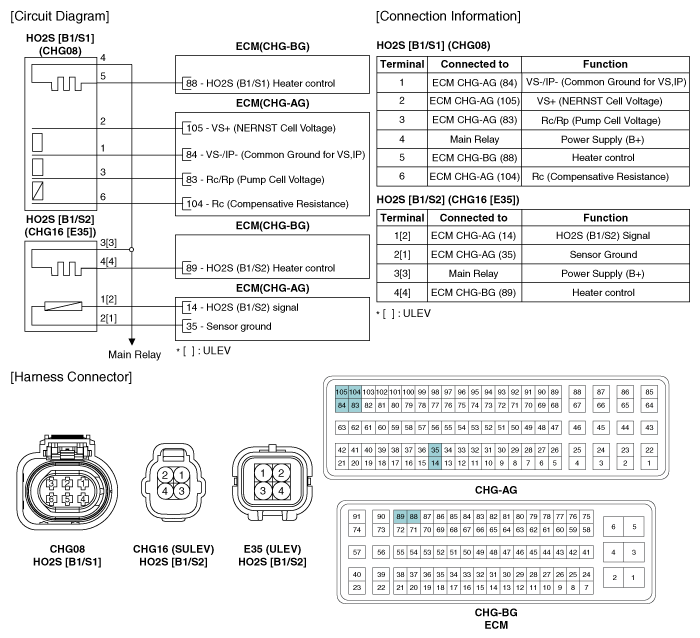

Circuit Diagram


    Heated Oxygen Sensor (HO2S). Specifications
    Specification HO2S [Bank 1/Sensor 1] Item Specification Heater Resistance (Ω) 2.5 ~ 4.0 [20°C(68°F)] HO2S [Bank 1/Sensor 2 ...

    Heated Oxygen Sensor (HO2S). Repair procedures
    Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance between th ...
