Hyundai Sonata: Multimedia jack. Schematic Diagrams - Audio - Body Electrical SystemHyundai Sonata: Multimedia jack. Schematic Diagrams

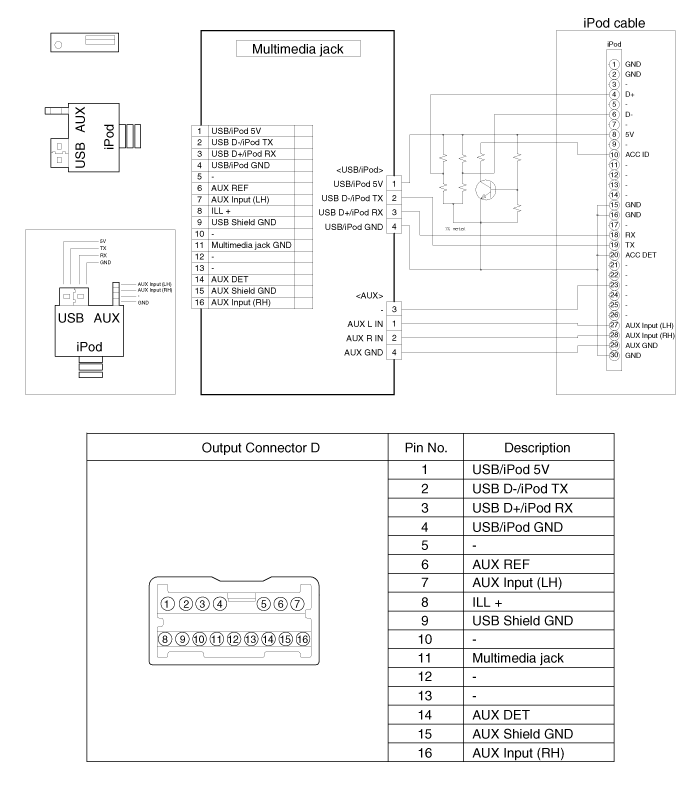

Circuit Diagram


    Audio Remote Control. Repair procedures
    Inspection 1. Check the audio remote control switch for resistance between No.3 and No.5 terminals in each switch position. Switch ...

    Multimedia jack. Description and Operation
    Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle's sound ...
