Hyundai Sonata: Multimedia Jack. Schematic Diagrams - AVN System - Body Electrical SystemHyundai Sonata: Multimedia Jack. Schematic Diagrams

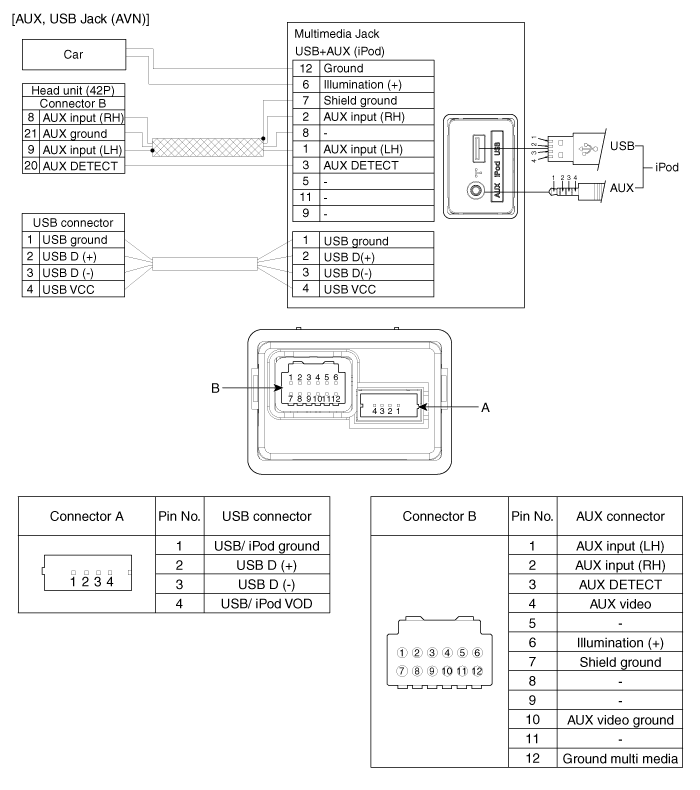

Circuit Diagram


    AVN Head Unit. Repair procedures
    Removal AVN Head Unit • Take care not to scratch the center fascia panel and related par ...

    Multimedia Jack. Description and Operation
    Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle's sound ...
