Hyundai Sonata: Panoramaroof. Components and Components Location - Exterior - Body (Interior and Exterior)Hyundai Sonata: Panoramaroof. Components and Components Location

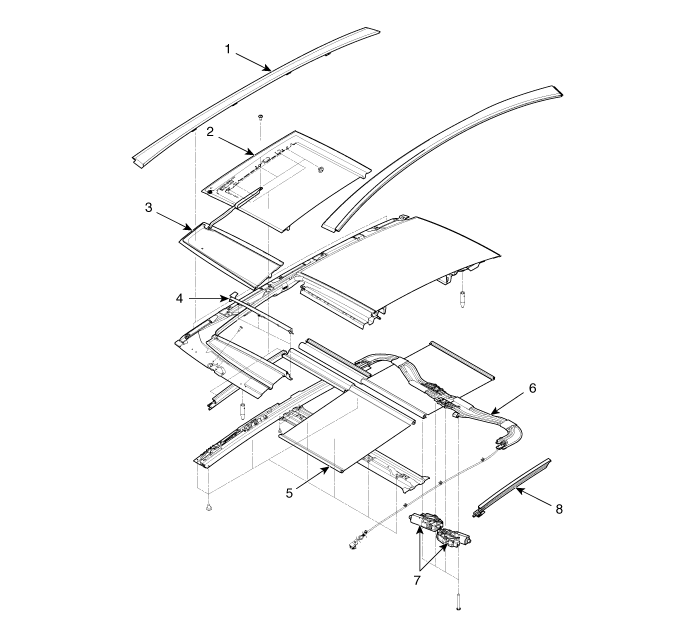

Components

1. Roof molding
2. Movable glass
3. Wind deflector
4. Front cover assembly
5. Roller blind
6. Mechanism assembly
7. Motor
8. Cover
