Hyundai Sonata: Power Seat Motor. Repair procedures
Inspection
Power Seat Motor
| 1. |

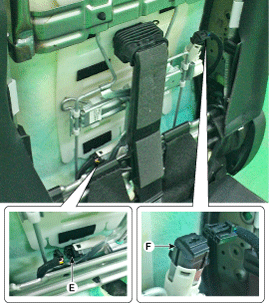

Disconnect the connectors for each motor.
A : Front height motor
B : Slide motor
C : Rear height motor
D : Recline motor
E : Lumber support motor
|
| 2. |
With the battery connected directly to the motor terminals, check
if the motors run smoothly.
|
| 3. |
Reverse the connections and check that the motor rotates in reverse.
|
| 4. |
If there is an abnormality, replace the motors.
|
Components and Components Location
Component Location
1. Slide motor
2. Front height motor
3. Rear height motor
4. Lumber support motor
5. Power seat control switch
6. Recline motor
7. Recl ...
