Hyundai Sonata: Rail Pressure Sensor (RPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: Rail Pressure Sensor (RPS). Schematic Diagrams

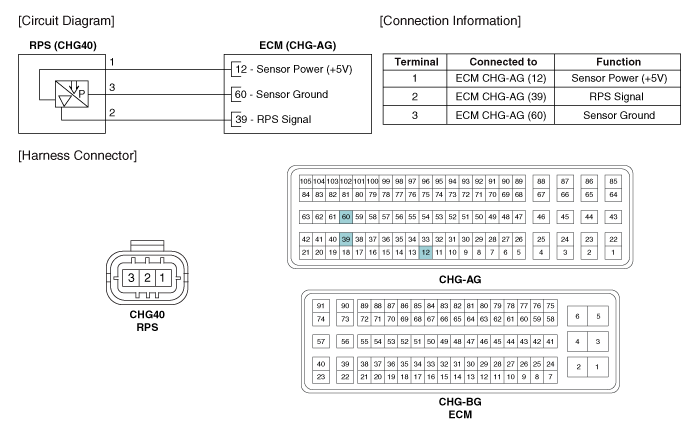

Circuit Diagram


    Rail Pressure Sensor (RPS). Repair procedures
    Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the RPS at idle and various engine speed. ...
