Hyundai Sonata: Seat belt warning (for driver’s seat)

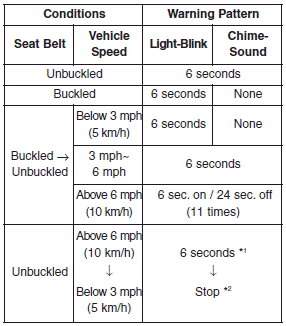

The driver's seat belt warning light and chime will activate to the following table when the ignition switch is in "ON" position.
*1 Warning pattern repeats 11 times with an interval of 24 seconds. If the driver's
seat belt is buckled, the light will stop within 6 seconds and chime will stop immediately.
*2 The light will stop within 6 seconds and chime will stop immediately.
