Hyundai Sonata: Smart key unit. Components and Components Location

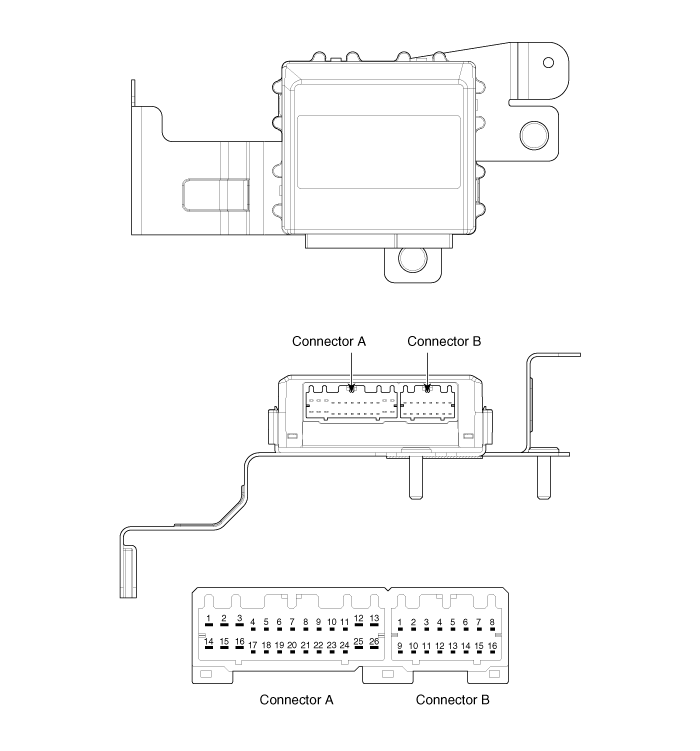

Component (1)
Connector Pin Information
|
Pin |
Connector A |
Pin |
Connector B |
|
1 |
Battery |
1 |
Interior 2 antenna 2 |
|
2 |
Immobilizer Indicator |
2 |
Interior 1 antenna 2 |
|
3 |
GND 1 |
3 |
- |
|
4 |
- |
4 |
- |
|
5 |
Trunk lid |
5 |
Trunk antenna 1 |
|
6 |
Front left door lock / unlock |
6 |
Bumper antenna 1 |
|
7 |
External buzzer |
7 |
Front right side antenna 1 |
|
8 |
- |
8 |
Front left side antenna 1 |
|
9 |
ACC |
9 |
Interior 2 antenna 1 |
|
10 |
CAN high |
10 |
Interior 1 antenna 1 |
|
11 |
CAN low |
11 |
- |
|
12 |
- |
12 |
- |
|
13 |
RF Communication |
13 |
Trunk antenna 2 |
|
14 |
IGN 1 |
14 |
Bumper antenna 2 |
|
15 |
P position |
15 |
Front right side antenna 2 |
|
16 |
GND 2 |
16 |
Front left side antenna 2 |
|
17 |
- |
|
|
|
18 |
- |
||
|
19 |
- |
||
|
20 |
Front right door lock / unlock |
||
|
21 |
- |
||
|
22 |
Diagnosis |
||
|
23 |
SSB switch |
||
|
24 |
Brake |
||
|
25 |
- |
||
|
26 |
- |

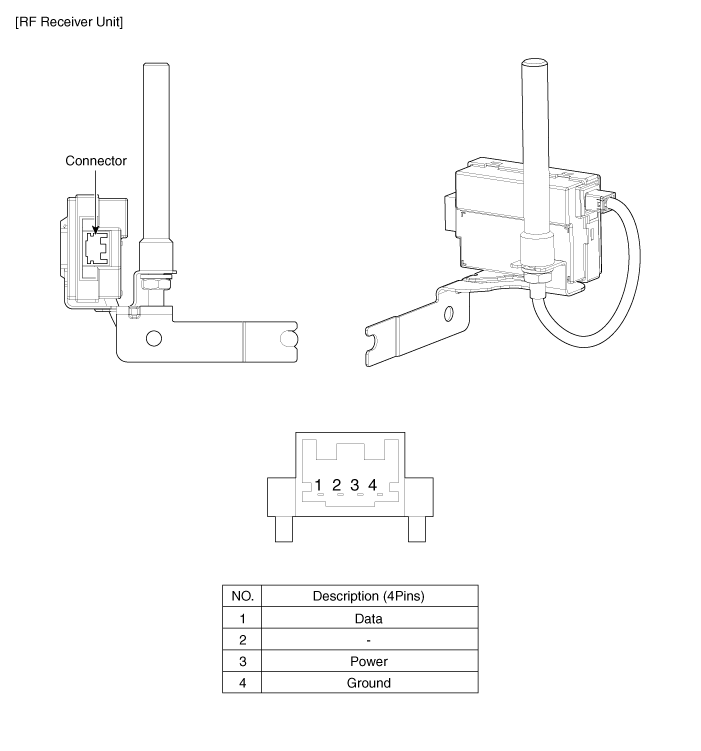

Component (2)
Smart key. Repair procedures
Smart Key
Smart Key Code Saving
1.
Connect the DLC cable of GDS to the data link connector in driver
side crash pad lower panel, turn the power on GDS.
...
Smart key unit. Schematic Diagrams
Circuit Diagram
...
