Hyundai Sonata: Smart key unit. Schematic Diagrams - Smart key System - Body Electrical SystemHyundai Sonata: Smart key unit. Schematic Diagrams

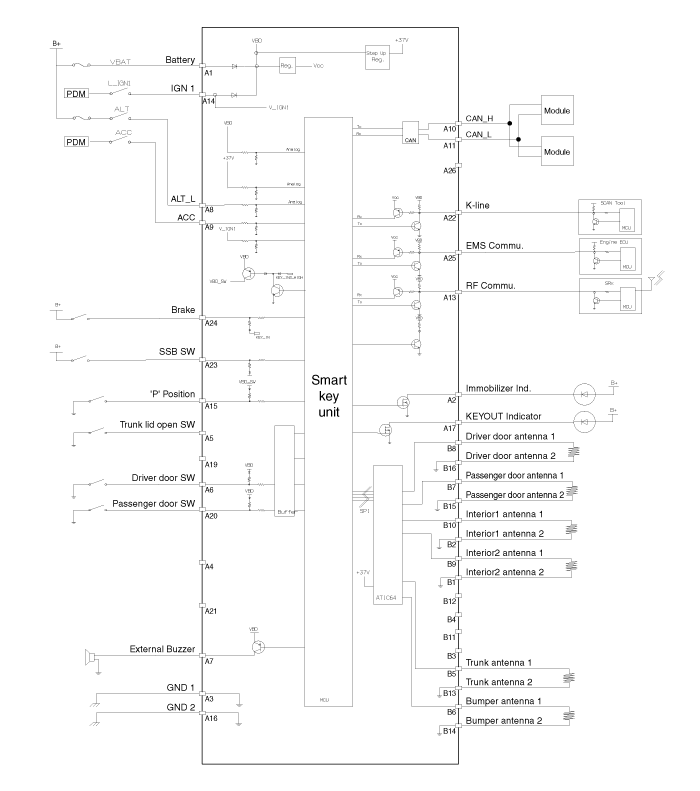

Circuit Diagram


    Smart key unit. Components and Components Location
    Component (1) Connector Pin Information Pin Connector A Pin Connector B 1 Battery 1 Interior 2 an ...

    Smart key unit. Repair procedures
    Inspection Smart Key Unit - Refer to the BE group - inspection / self diagnosis with GDS. Smart Key Switch - Refer to the BE group - inspecti ...
