Components

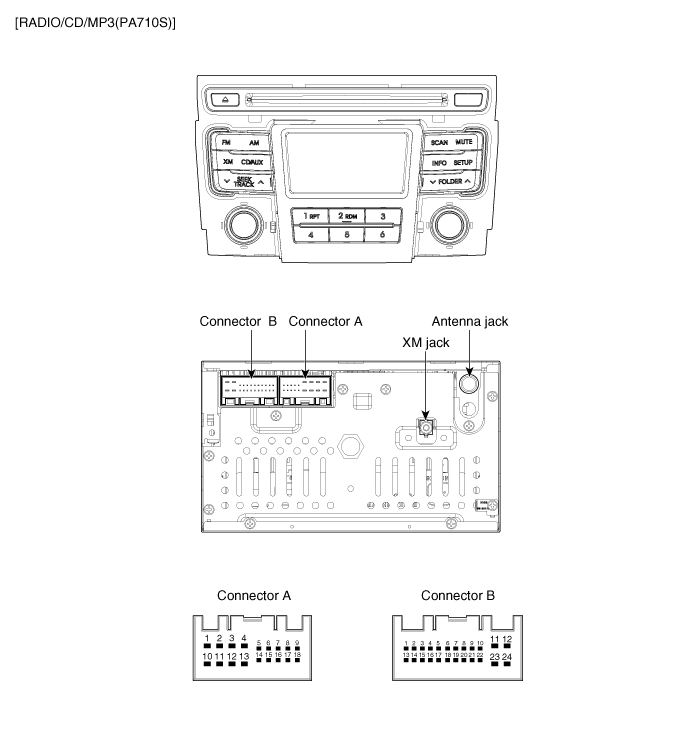

Terminal specification (PA710S)
Pin NO
 Comments
 Remarks
 Output voltage (V)
A1
 Loudspeaker Rear Left +
 Needed connection to the car
 ANALOG output
A2
 Loudspeaker Front Left +
 Needed connection to the car
 ANALOG output
A3
 Loudspeaker Front Right +
 Needed connection to the car
 ANALOG output
A4
 Loudspeaker Rear Right +
 Needed connection to the car
 ANALOG output
A7
 Ignition status checking for reliable phone connection
 (optional for Hands Free Kit)
 -
A8
 Rheostat from vehicle +
 Needed connection to the car
 -
A9
 Illumination DIM cancel spec.
 Needed connection to the car
 -
A10
 Loudspeaker Rear Left -
 Needed connection to the car
 ANALOG output
A11
 Loudspeaker Front Left -
 Needed connection to the car
 ANALOG output
A12
 Loudspeaker Front Right -
 Needed connection to the car
 ANALOG output
A13
 Loudspeaker Rear Right -
 Needed connection to the car
 ANALOG output
A17
 Rheostat from vehicle -
 Needed connection to the car
 -
A18
 Remote supply for motorised antenna
 Needed connection to the car
 9 to 18
B4
 Steel wheel remote control input
 Needed connection to the car
 　
B6
 USB data line
 (optional for USB Control)
 3.2 to 3.45
B7
 USB/iPod power (5V, MAX 1.1A)
 (optional for USB Control)
 4.9 to 5.1
B8
 AUX ST sound R-CH input
 Needed connection to the car
 -
B9
 AUX ST sound GND
 Needed connection to the car
 -
B10
 Bluetooth H/F voice input
 (optional for B/T hands free)
 -
B11
 ACC
 Needed connection to the car
 -
B12
 Fused battery power supply (10A)
 Needed connection to the car
 -
B16
 Speed signal from vehicle
 Needed connection to the car
 -
B17
 Remote control GND
 Needed connection to the car
 GND
B18
 USB data line
 (optional for USB Control)
 3.2 to 3.45
B19
 i Pod detection line
 (optional for USB Control)
 GND
B20
 AUX connection detect
 Needed connection to the car
 -
B21
 AUX ST sound L-CH input
 Needed connection to the car
 -
B22
 Bluetooth H/F voice input GND
 (optional for B/T hands free)
 -
B24
 Ground of Power Supply Line
 Needed connection to the car
 GND

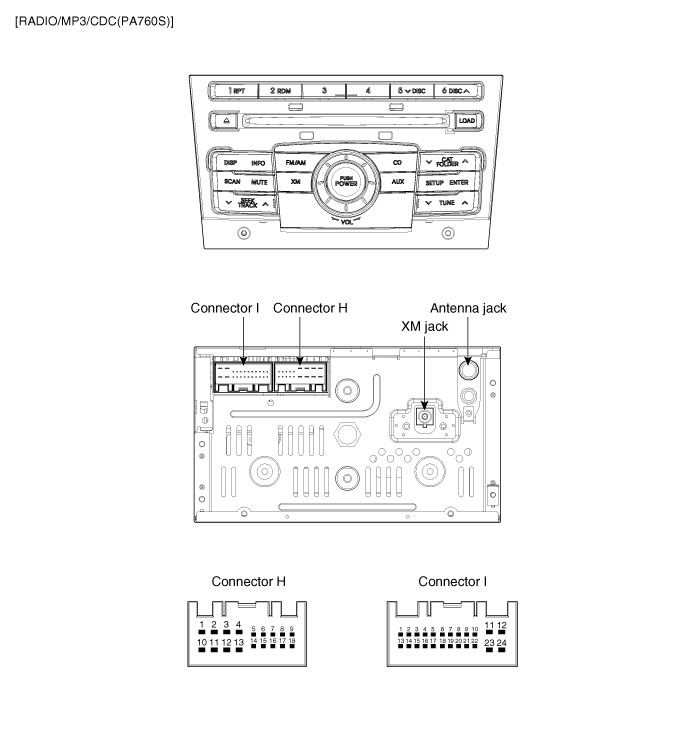

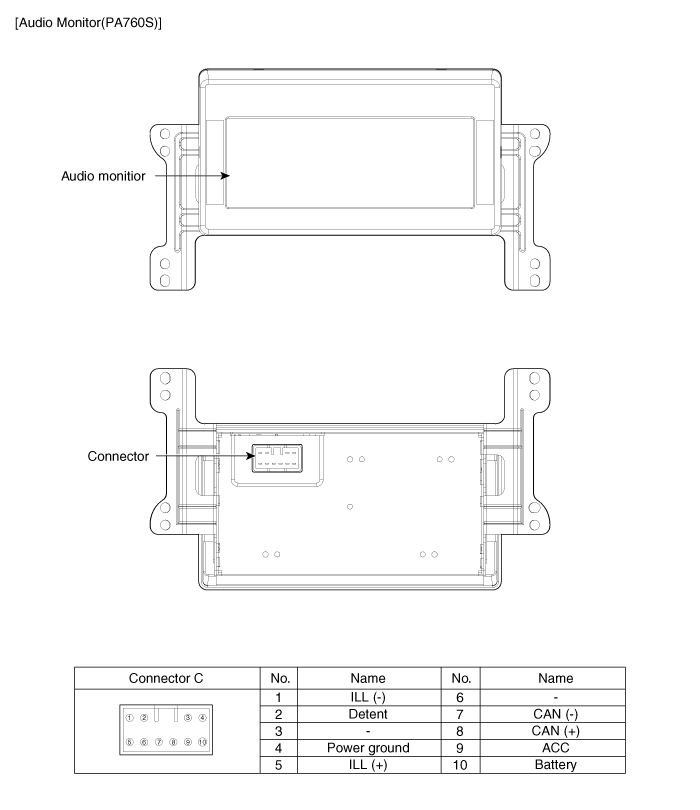

Terminal specification (PA760S)
Pin NO
 Comments
 Remarks
 Output voltage (V)
A5
 SPDIF digital signal GND
 Needed connection to the car
 GND
A6
 SPDIF digital signal negative
 Needed connection to the car
 2 to 3.3
A7
 Ignition status checking for reliable phone connection
 (optional for Hands Free Kit)
 -
A8
 Rheostat from vehicle +
 Needed connection to the car
 -
A9
 Illumination DIM cancel spec.
 Needed connection to the car
 -
A15
 SPDIF digital signal positive
 Needed connection to the car
 2 to 3.3
A17
 Rheostat from vehicle -
 Needed connection to the car
 -
A18
 Remote supply for motorised antenna
 Needed connection to the car
 9 to 18
B1
 CAN-H I/F
Needed connection to the car
 3.6 to 5
B4
 Steel wheel remote control input
 Needed connection to the car
 　
B6
 USB data line
 (optional for USB Control)
 3.2 to 3.45
B7
 USB/iPod power (5V, MAX 1.1A)
 (optional for USB Control)
 4.9 to 5.1
B8
 AUX ST sound R-CH input
 Needed connection to the car
 -
B9
 AUX ST sound GND
 Needed connection to the car
 -
B10
 Bluetooth H/F voice input
 (optional for B/T hands free)
 -
B11
 ACC
 Needed connection to the car
 -
B12
 Fused battery power supply (10A)
 Needed connection to the car
 -
B13
 CAN-L I/F
Needed connection to the car
 3.6 to 5.25
B16
 Speed signal from vehicle
 Needed connection to the car
 -
B17
 Remote control GND
 Needed connection to the car
 GND
B18
 USB data line
 (optional for USB Control)
 3.2 to 3.45
B19
 i-Pod detection line
 (optional for USB Control)
 GND
B20
 AUX connection detect
 Needed connection to the car
 -
B21
 AUX ST sound L-CH input
 Needed connection to the car
 -
B22
 Bluetooth H/F voice input GND
 (optional for B/T hands free)
 -
B24
 Ground of Power Supply Line
 Needed connection to the car
 GND


    Components and Components Location

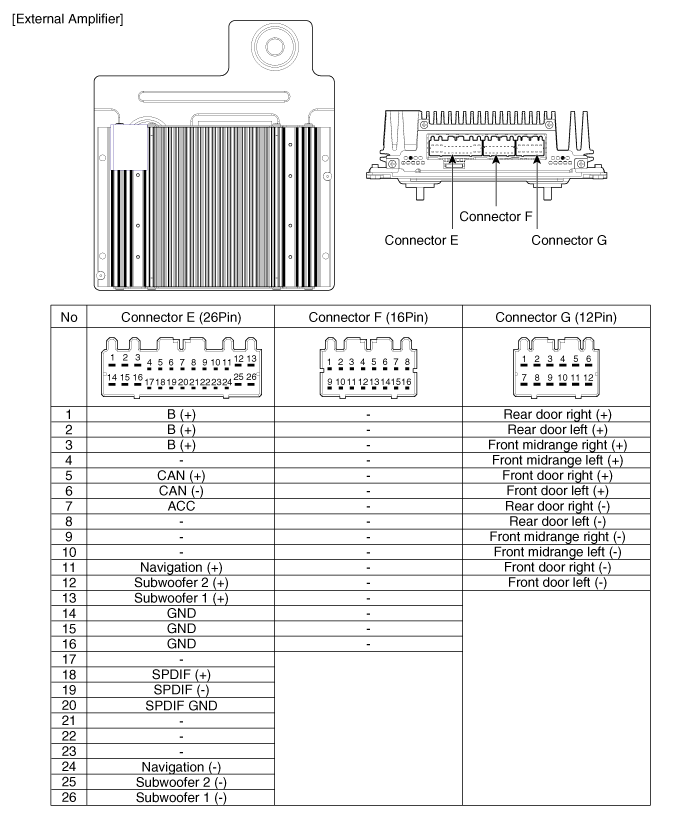

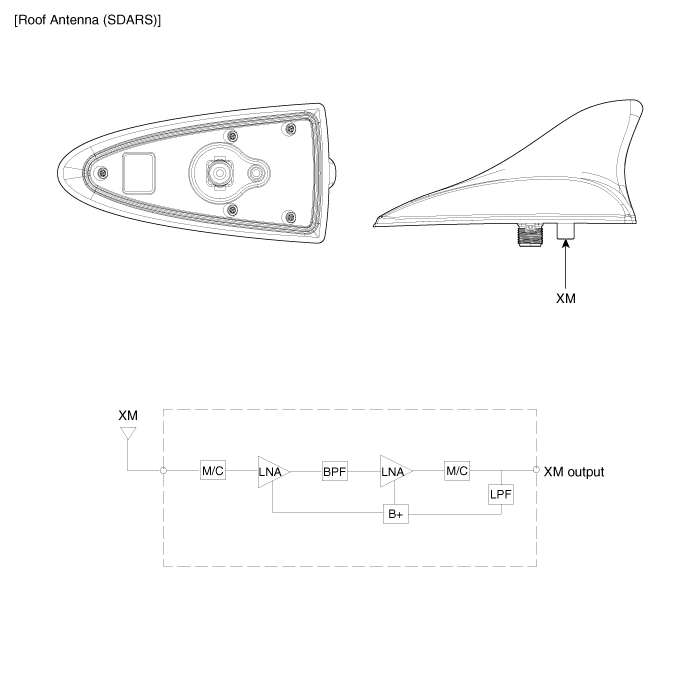

    Component Location 1. Audio unit 2. Midrange speaker 3. External amplifier 4. Glass antenna (AM/FM) 5. Front door speaker 6. Rear door speaker 7. Woofer s ...
