Hyundai Sonata: Components and Components Location - Audio - Body Electrical SystemHyundai Sonata: Components and Components Location

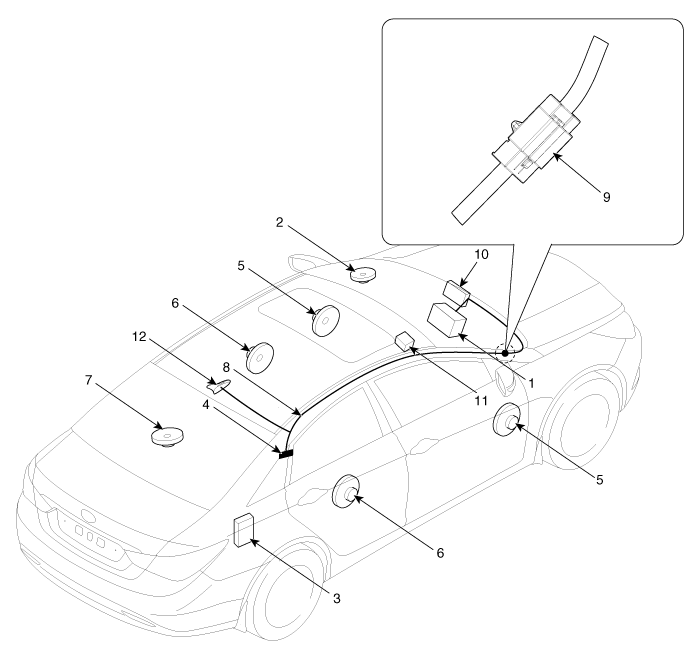

Component Location

1. Audio unit
2. Midrange speaker
3. External amplifier
4. Glass antenna (AM/FM)
5. Front door speaker
6. Rear door speaker
7. Woofer speaker
8. Antenna feeder cable
9. Feeder cable joint connector
10. Audio monitor (For PA760)
11. Multimedia jack
12. Roof antenna (SDARS)


    Specifications
    Specifications Audio Item Specification Model RADIO/CD/MP3 (PA710S) RADIO/CDC/MP3 (PA760S) Power supply DC ...

    Audio Unit. Components and Components Location
    Components Terminal specification (PA710S) Pin NO Comments Remarks Output voltage (V) A1 Loudspeaker Rear Left + ...
