Hyundai Sonata: Components and Components Location - General Information - Restraint - Hyundai Sonata YF 2011-2018 Service ManualHyundai Sonata: Components and Components Location

Components

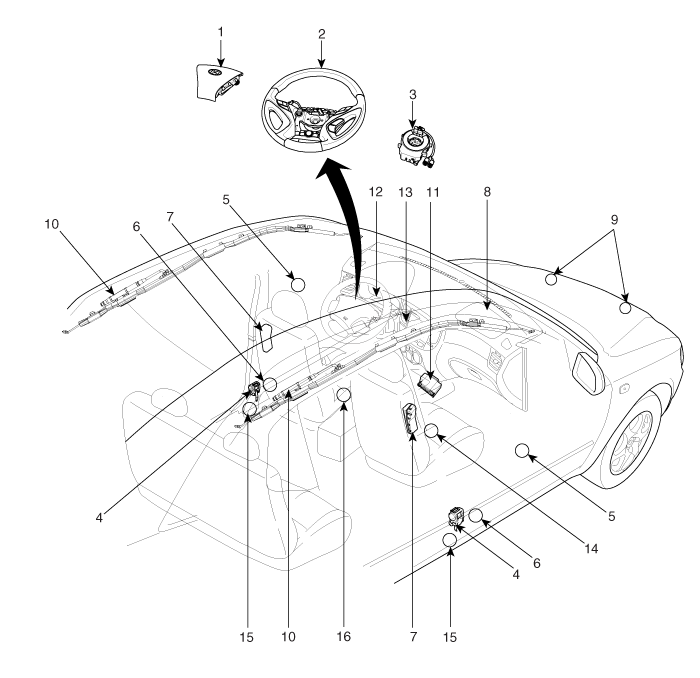

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Pressure Side Impact Sensor (P-SIS)
6. Side Impact Sensor (SIS)
7. Side Airbag (SAB)
8. Passenger Airbag (PAB)
9. Front Impact Sensor (FIS)
10. Curtain Airbag (CAB)
11. Supplemental Restraint System Control Module(SRSCM)
12. Airbag Warning Lamp
13. Telltale Lamp
14. Weight Classification System (WCS) Module
15. Anchor Pretensioner (APT)
16. Seat Track Position Sensor (STPS)


Components Location

Supplemental Restraint System Control Module (SRSCM)

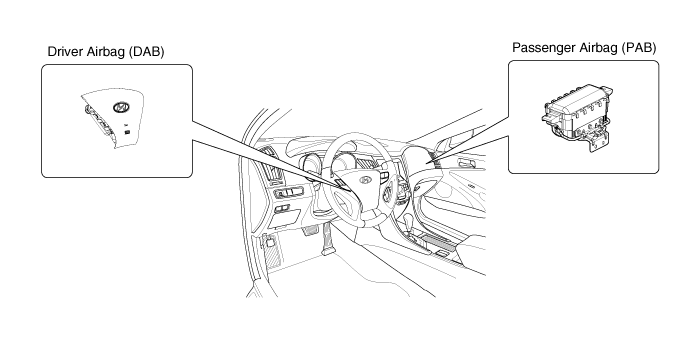

Driver Airbag (DAB) / Passenger Airbag (PAB)

Side Airbag (SAB)

Curtain Airbag (CAB)

Seat Belt Pretensioner (BPT)

Front Impact Sensor (FIS)

Side Impact Sensor (SIS)


    Repair procedures
    Component Replacement After Deployment Before doing any SRS repairs, use the GDS Pro to check for DTCs. Refer to the Diagnosti ...
