Hyundai Sonata: Components and Components Location - Cylinder Block - Engine Mechanical SystemHyundai Sonata: Components and Components Location

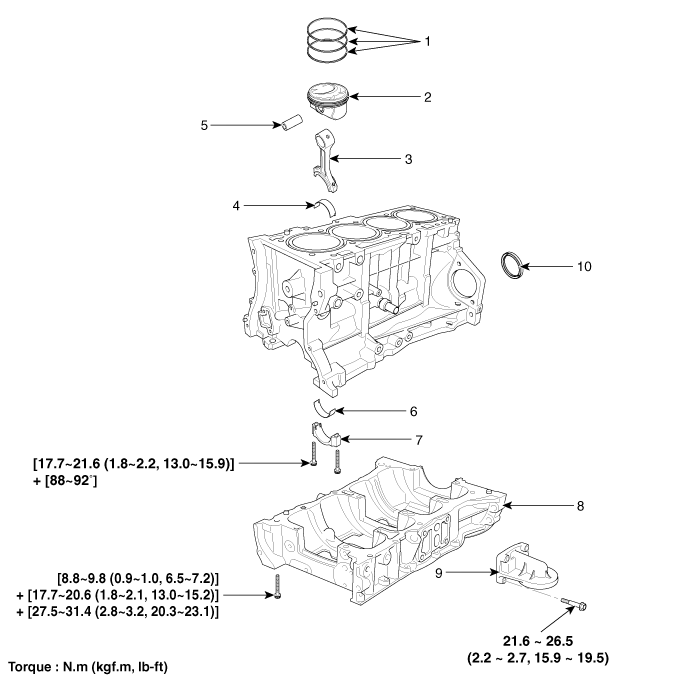

Components

1. Piston ring
2. Piston
3. Connecting rod
4. Connecting rod upper bearing
5. Piston pin
 6. Connecting rod lower bearing
7. Connecting rod bearing cap
8. Ladder frame
9. Oil filter bracket
10. Crankshaft rear oil seal

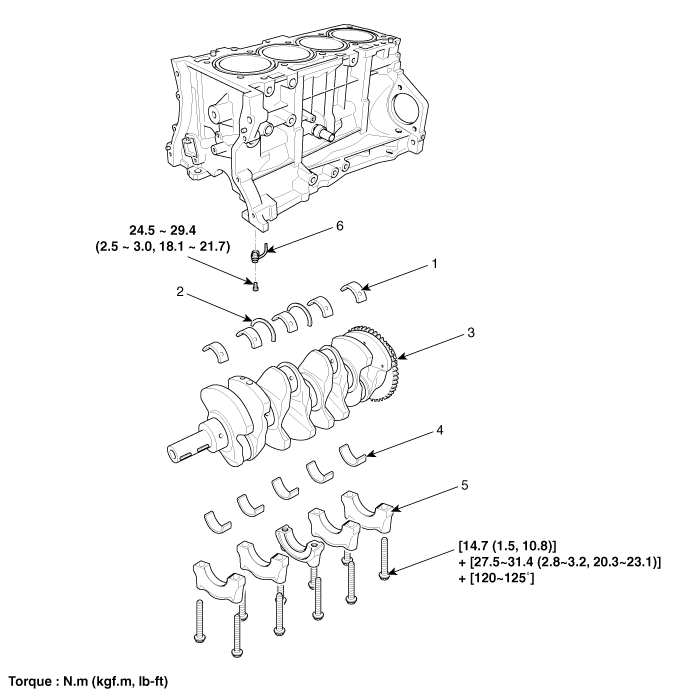

1. Crankshaft upper bearing
2. Thrust bearing
3. Crankshaft
 4. Crankshaft lower bearing
5. Main bearing cap
6. Piston cooling oil jet


    Cylinder Block. Repair procedures
