Component Location

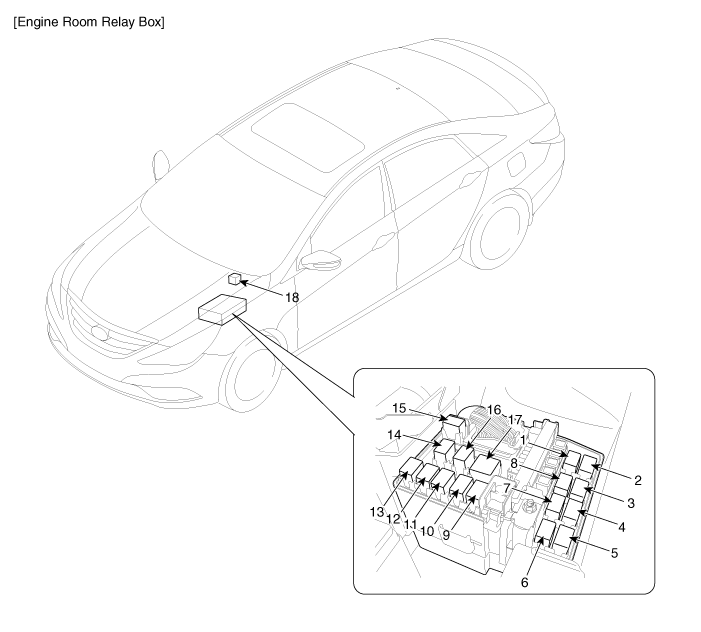

1. Front deicer relay
2. Back up relay
3. IGN2
4. Rain sensor
5. Start #1 relay (H1)
6. HAC relay
7. Wiper relay
8. IGN1
9. Start #2 relay
 10. Cooling pan #1
11. Cooling pan #2 (Low)
12. Blower relay
13. Rear defogger relay
14. Horn relay
15. ACC
16. Fuel pump relay
17. Main relay
18. Two turn unlock relay

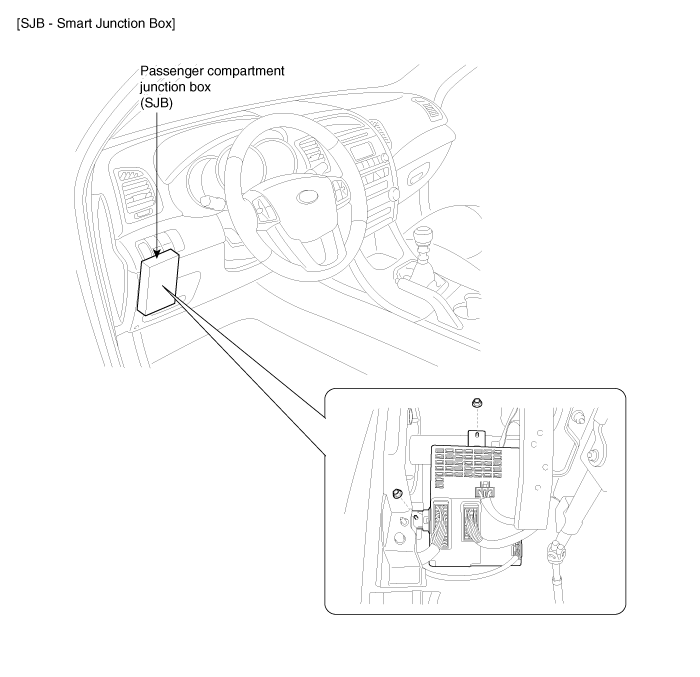

[Relays built in smart junction box]
-
Power window relay
-
Trunk lid relay
-
Door lock relay
-
Door unlock relay
