Hyundai Sonata: Components and Components Location

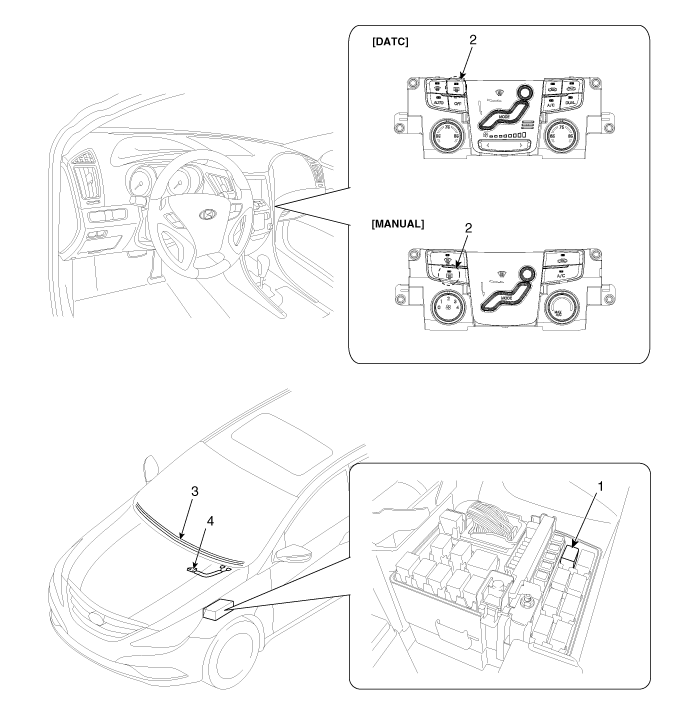

Component Location
|
1. Windshield deicer relay (Built-in engine room relay box) 2. Windshield deicer switch |
3. Windshield deicer 4. Deicer connector |
Description and Operation
Description
Windshield deicer system prevent windshield wiper from freezing in the
winter season. It consists of deicer in the lower part of windshield, switch
and relay. Body control module ...
