Hyundai Sonata: CVVT Oil Control Valve (OCV). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: CVVT Oil Control Valve (OCV). Schematic Diagrams

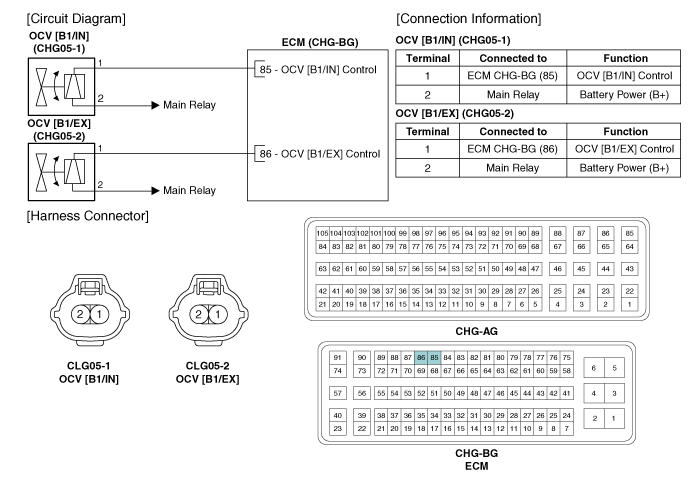

Circuit Diagram


    CVVT Oil Control Valve (OCV). Specifications
    Specification Item Specification Coil Resistance (Ω) 6.9 ~ 7.9 [20°C(68°F)] ...

    CVVT Oil Control Valve (OCV). Repair procedures
    Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the ...
