Hyundai Sonata: Front Disc Brake. Components and Components Location - Brake System - Brake System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Front Disc Brake. Components and Components Location

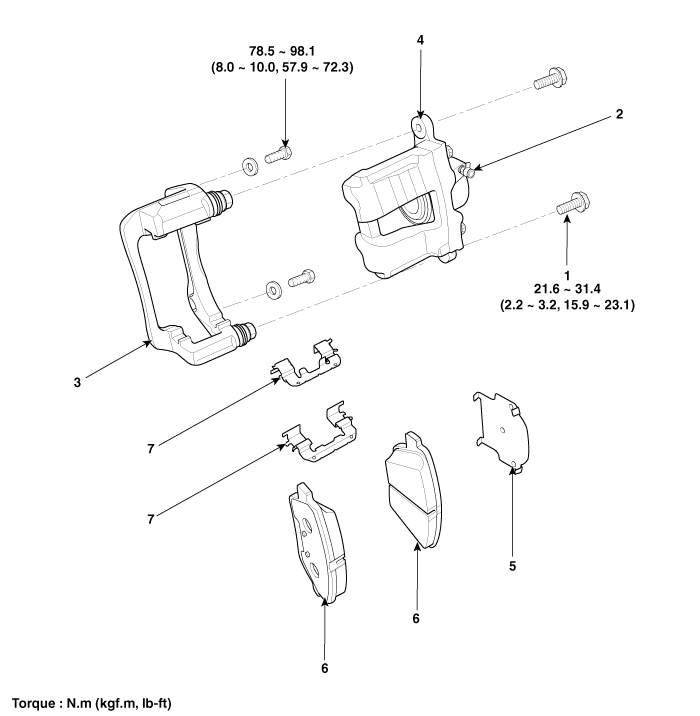

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper bracket
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer
