Hyundai Sonata: Front Seat. Components and Components Location - Seat & Power Seat - Body (Interior and Exterior)Hyundai Sonata: Front Seat. Components and Components Location

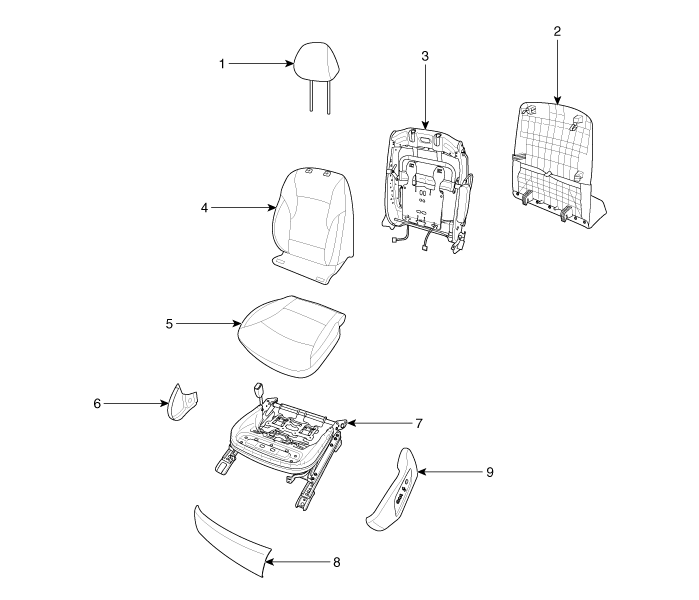

Components

1. Headrest
2. Seat back panel
3. Seat back frame
4. Seat back cover
5. Seat cushion cover
6. Shield cover
7. Seat cushion frame
8. Recliner center cover
9. Recliner cover
