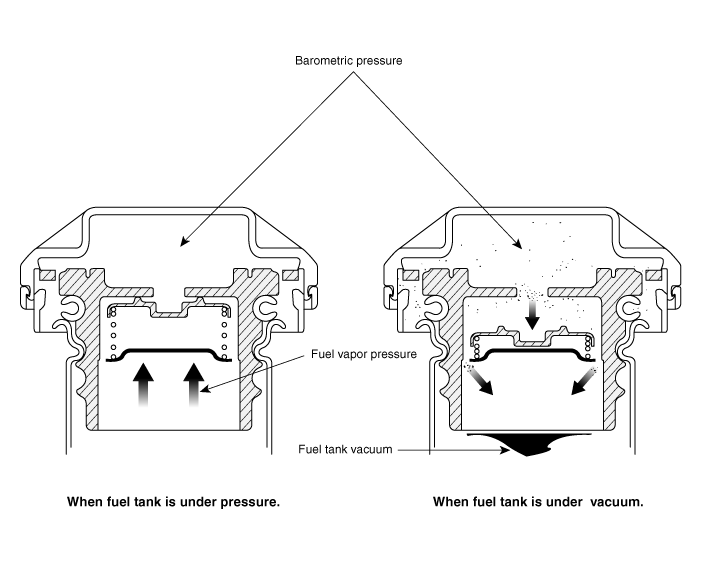

A ratchet tightening device on the threaded fuel filler cap reduces the chances of incorrect installation, which seals the fuel filler. After the gasket on the fuel filler cap and the filler neck flange contact each other, the ratchet produces a loud clicking noise indicating the seal has been set.

Canister. Repair procedures

Removal 1. Disconnect the canister close valve connector (A). 2. Disconnect the ventilation tube quick-connector (B) and the vapor tube qu ...

Fuel Tank Air Filter. Repair procedures

Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the canister close valve connector (A ...
