Hyundai Sonata: Instrument Cluster. Schematic Diagrams - Indicators And Gauges - Body Electrical SystemHyundai Sonata: Instrument Cluster. Schematic Diagrams

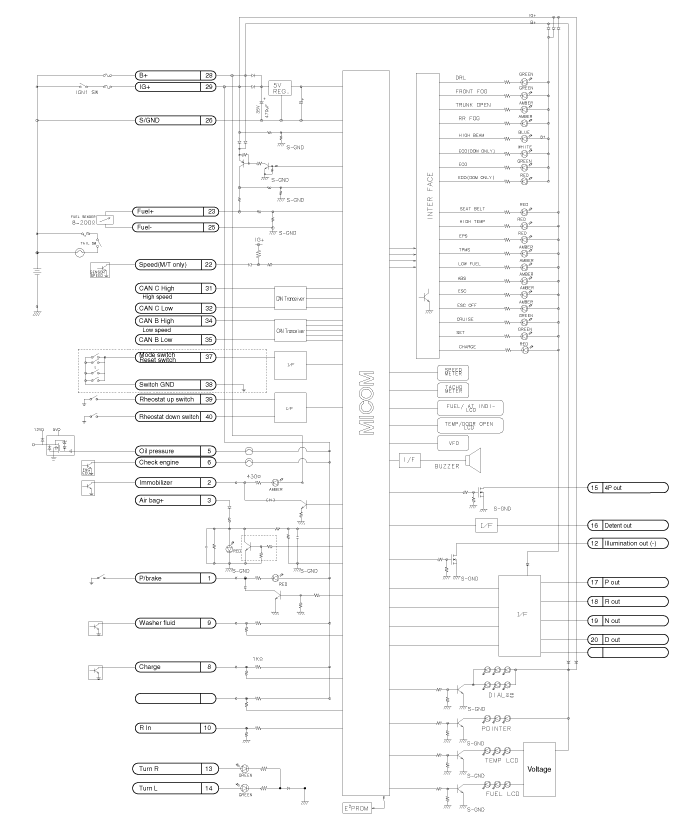

Circuit Diagram

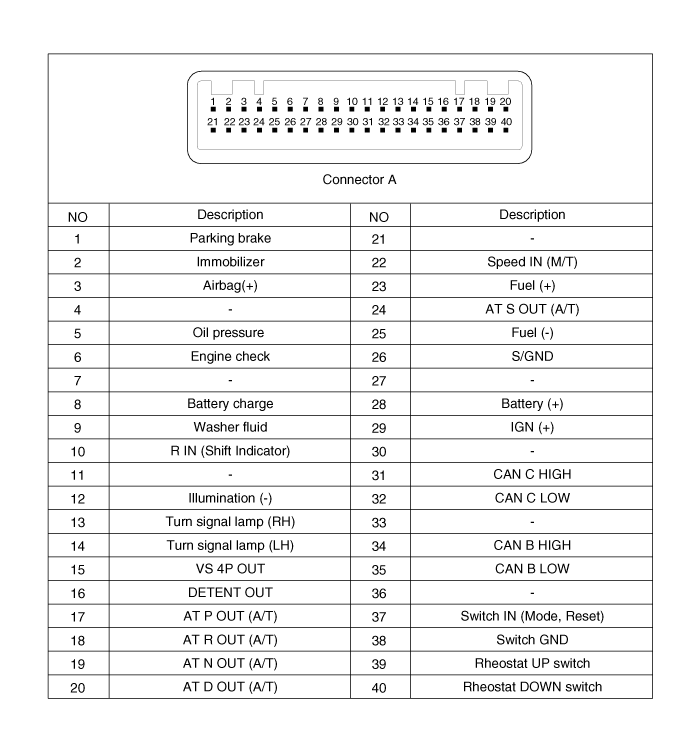

Input/Output Specification
