Hyundai Sonata: Manual Transaxle. Components and Components Location - Manual Transaxle System - Manual Transaxle SystemHyundai Sonata: Manual Transaxle. Components and Components Location

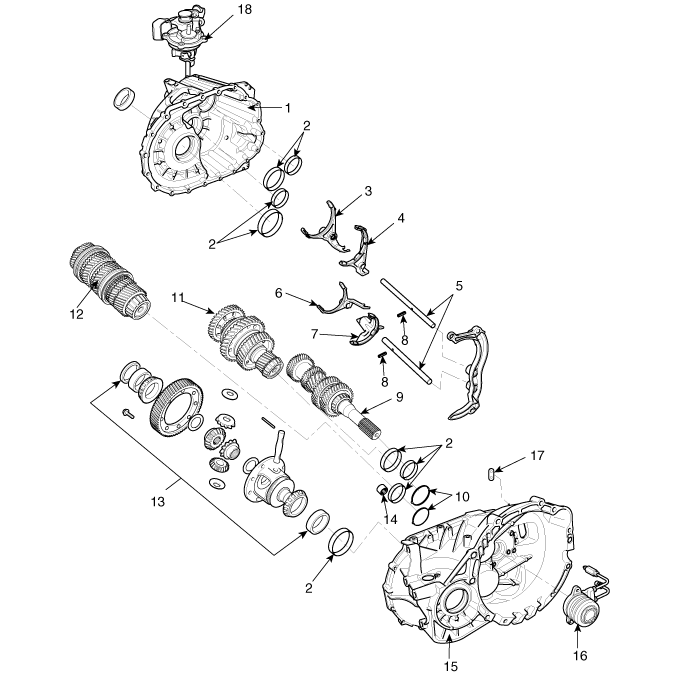

Components

1. Transaxle case
2. Taper roller bearing outer race
3. 1st/2nd shift fork
4. Reverse shift fork
5. Shift rail
6. 3rd/4th shift fork
7. 5th/6th shift fork
8. Spring pin
9. Input shaft
10. Oil guide
11. 1st output shaft
12. 2nd output shaft
13. Differential assembly
14. Needle bearing
15. Clutch housing
16. Concentric slave cylinder assembly
17. Boot
18. Control shaft complete
