Hyundai Sonata: Seat Heater Switch. Schematic Diagrams - Seat Electrical - Body Electrical System - Hyundai Sonata YF 2011-2018 Service ManualHyundai Sonata: Seat Heater Switch. Schematic Diagrams

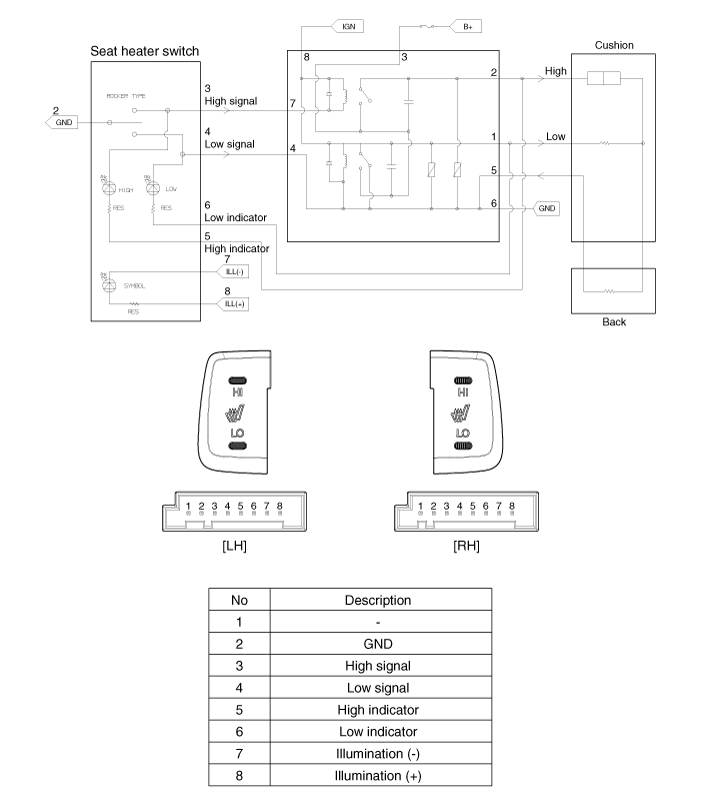

Circuit Diagram


    Power Seat Control Switch. Repair procedures
    Inspection With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch. A ...

    Seat Heater Switch. Repair procedures
    Inspection Front Seat Heater Switch 1. Disconnect the negative (-) battery terminal. 2. Remove the floor console upper cover (A). ...
