Hyundai Sonata: Power Window Switch. Schematic Diagrams - Power Windows - Body Electrical SystemHyundai Sonata: Power Window Switch. Schematic Diagrams

Circuit Diagram

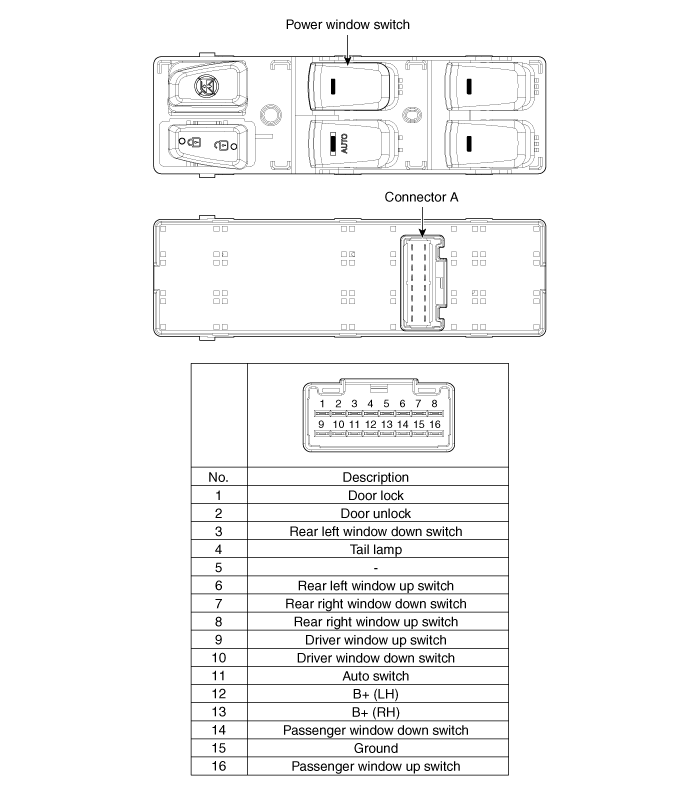

Driver Power Window Switch

Passenger Power Window Switch

Passenger Power Window Switch

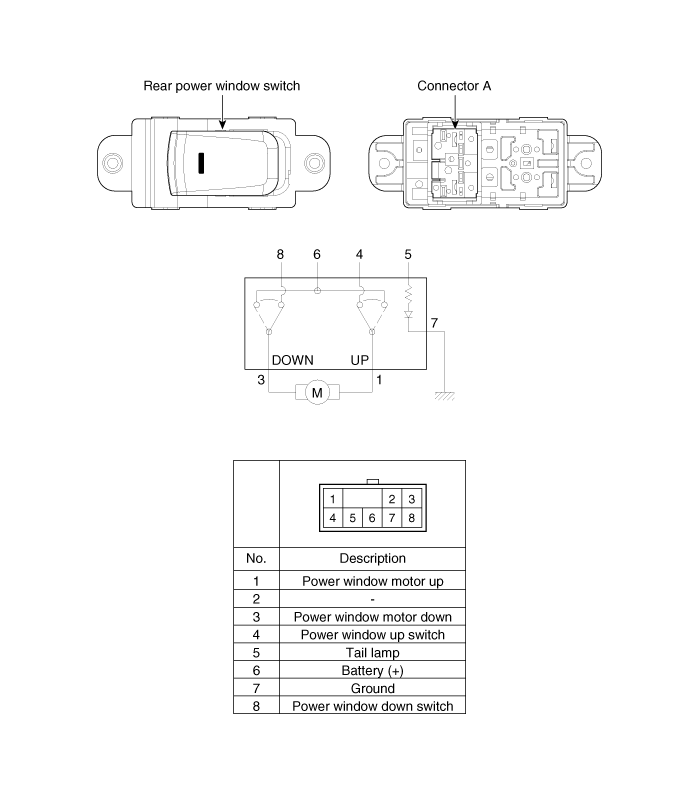

Rear Power Window Switch

Rear Power Window Switch


    Power Window Motor. Repair procedures
    Inspection Front Power Window Motor Inspection 1. Remove the front door trim panel. (Refer to the BD group - "Front door") 2. ...

    Power Window Switch. Repair procedures
    Inspection Power Window Main Switch Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim panel. ...
