Hyundai Sonata: Rear Disc Brake. Components and Components Location - Brake System - Brake System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Rear Disc Brake. Components and Components Location

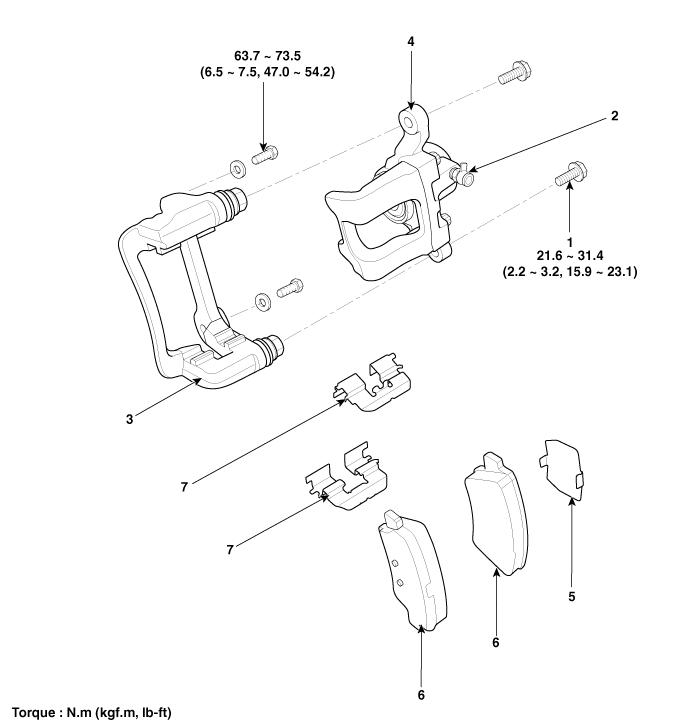

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper bracket
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer


    Front Disc Brake. Repair procedures
    Removal 1. Remove the front wheel & tire. Tightening torque: 88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) ...

    Rear Disc Brake. Repair procedures
    Removal 1. Remove the rear wheel & tire. Tightening torque: 88.3 ~107.9 N.m(9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) ...
