Hyundai Sonata: Rear Seat. Components and Components Location - Seat & Power Seat - Body (Interior and Exterior)Hyundai Sonata: Rear Seat. Components and Components Location

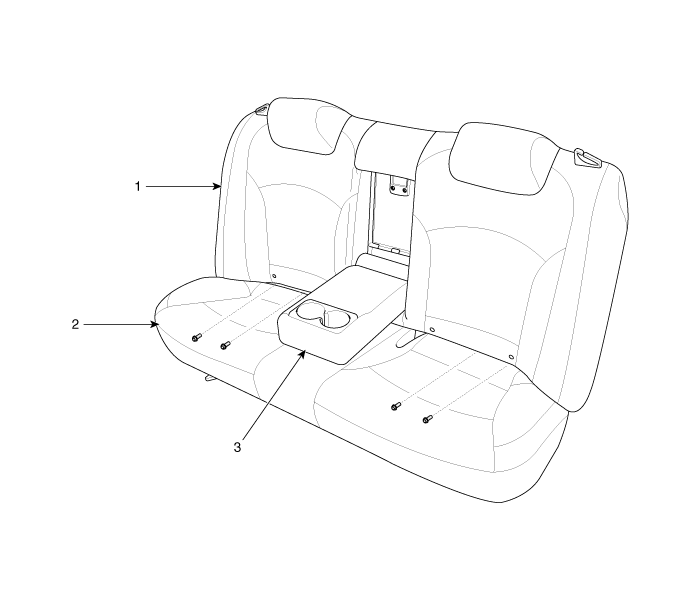

Components

1. Rear seat back
2. Rear seat cushion
3. Armrest
