Hyundai Sonata: Components and Components Location - Electric Power Steering - Steering SystemHyundai Sonata: Components and Components Location

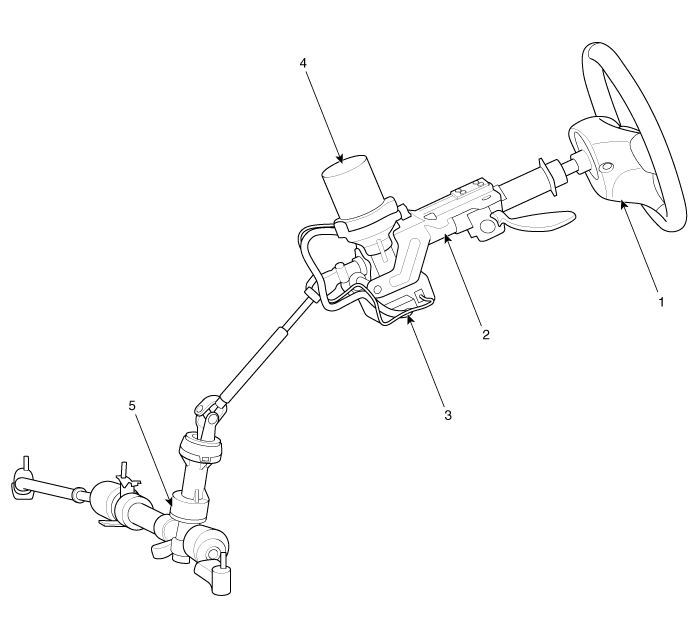

Components

1. Steering wheel
2. Steering column
3. ECU
4. Motor
5. Steering gear box


    Description and Operation
    Description EPS (Electric power steering, Column assist type) system uses an electric motor to assist the steering force and it is an engine operation independent steering system. EPS ...
