Hyundai Sonata: Components and Components Location - Smart key System - Body Electrical SystemHyundai Sonata: Components and Components Location

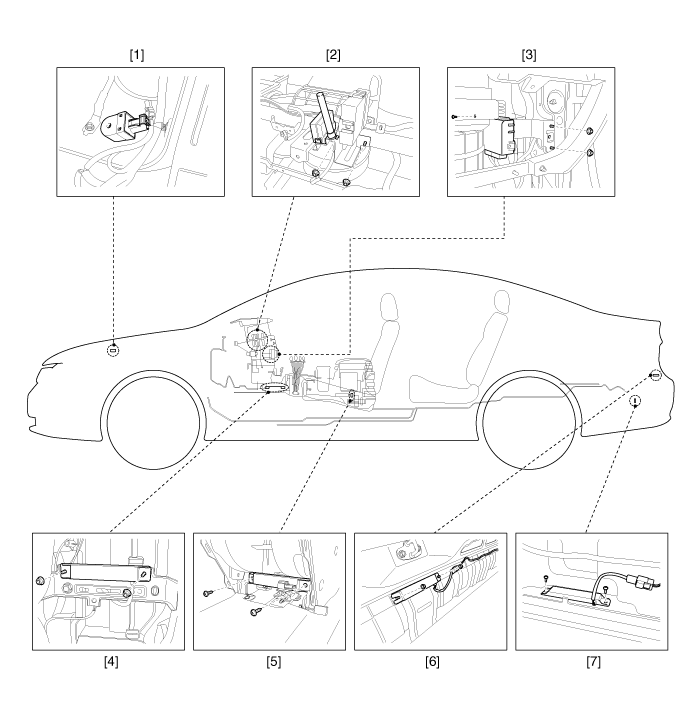

Component Location (1)

1. Buzzer
2. RF receiver
3. Smart key unit
4. Interior antenna 1
 5. Interior antenna 2
6. Trunk antenna
7. Bumper antenna

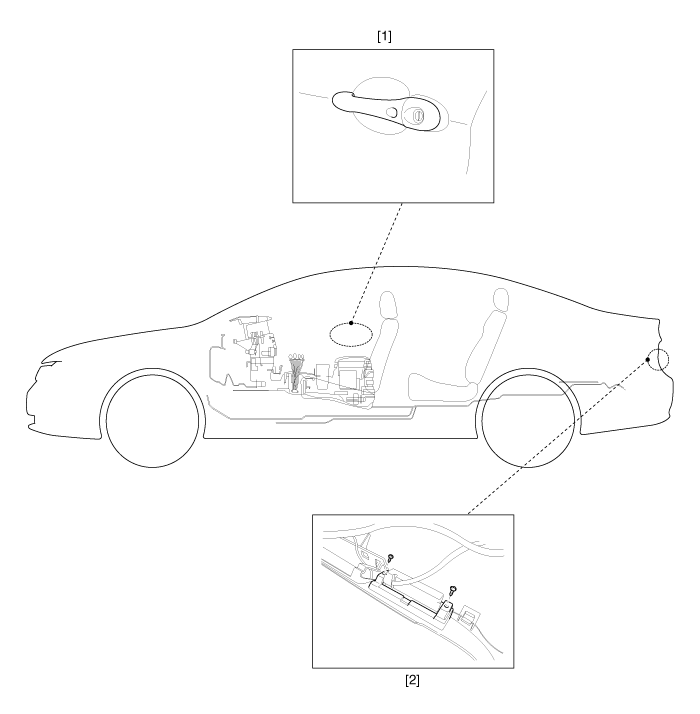

Component Location (2)

1. Door outside handle
 2. Trunk lid open switch


    Specifications
    Specification Smart Key Unit Items Specification Rated voltage DC 12V Operating voltage DC 9 ~ 16V O ...

    Description and Operation
    Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit i ...
