Hyundai Sonata: Telemetics Unit (TMU). Components and Components Location - MTS System - Body Electrical SystemHyundai Sonata: Telemetics Unit (TMU). Components and Components Location

Hyundai Sonata YF 2011-2014 Service Manual / Body Electrical System / MTS System / Telemetics Unit (TMU). Components and Components Location

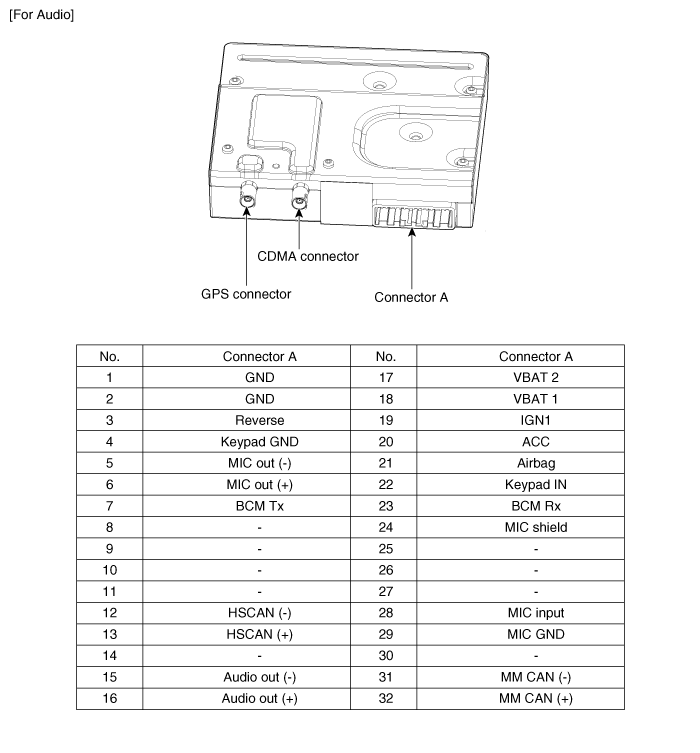

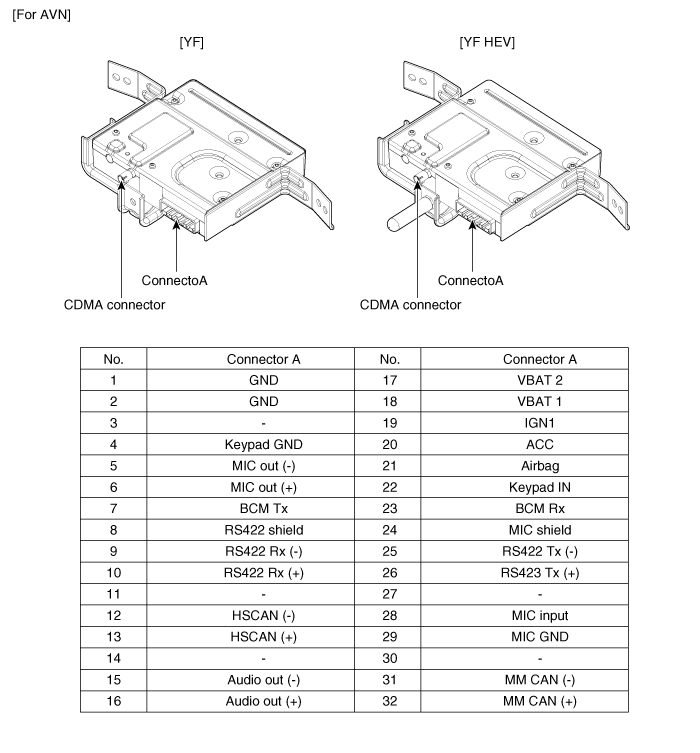

Component


    Description and Operation
    Description Mobile Telemetics System (MTS) Hyundai motor companies are now faced with the task of shifting their paradigm from vehicle-centered services to customer valuecentered services, ...

    Telemetics Unit (TMU). Repair procedures
    Removal 1. Remove the audio monitor (or AVN head unit) after loosening the mounting screws. (Refer to the BE group - "Audio Unit" or "AVN Unit" ...
