Hyundai Sonata: Components and Components Location - Fuel Filler Door - Body Electrical SystemHyundai Sonata: Components and Components Location

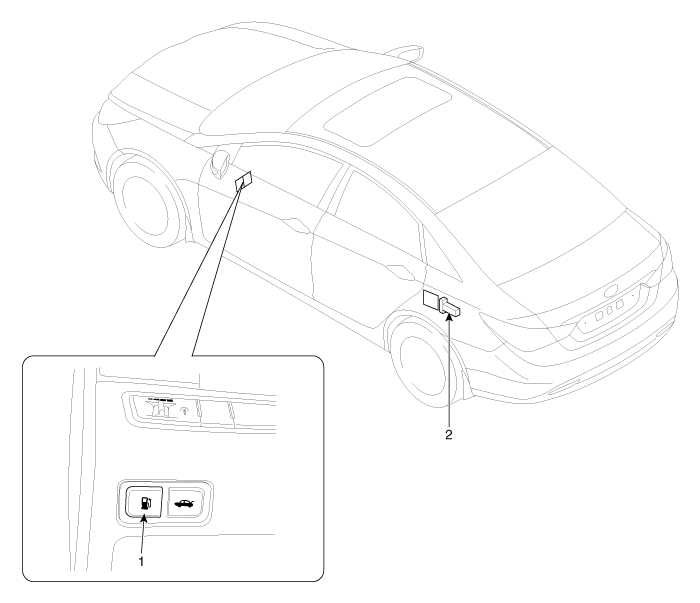

Component Location

1. Fuel filler door open switch
2. Fuel filler door release actuator
