Hyundai Sonata: Exhaust Manifold. Components and Components Location - Intake And Exhaust System - Engine Mechanical SystemHyundai Sonata: Exhaust Manifold. Components and Components Location

Components

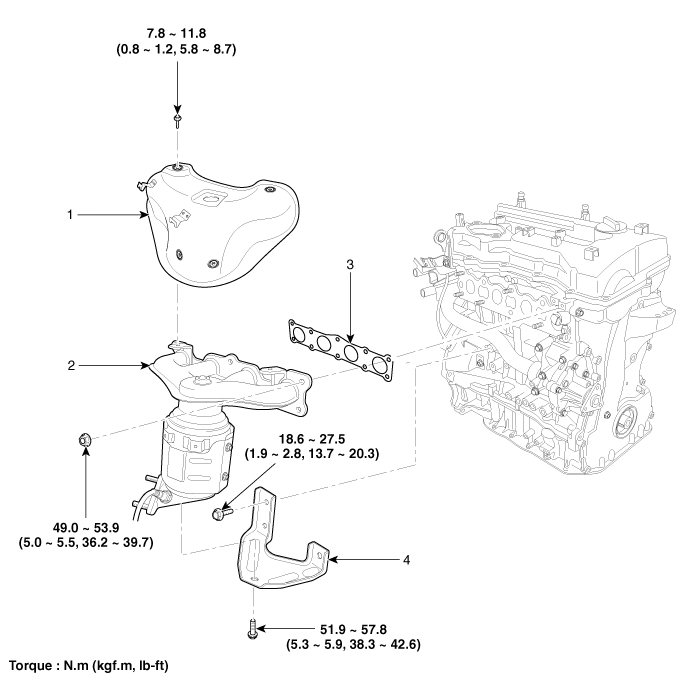

[ULEV]

1. Heat protector
2. Exhaust manifold
3. Exhaust manifold gasket
4. Exhaust manifold stay

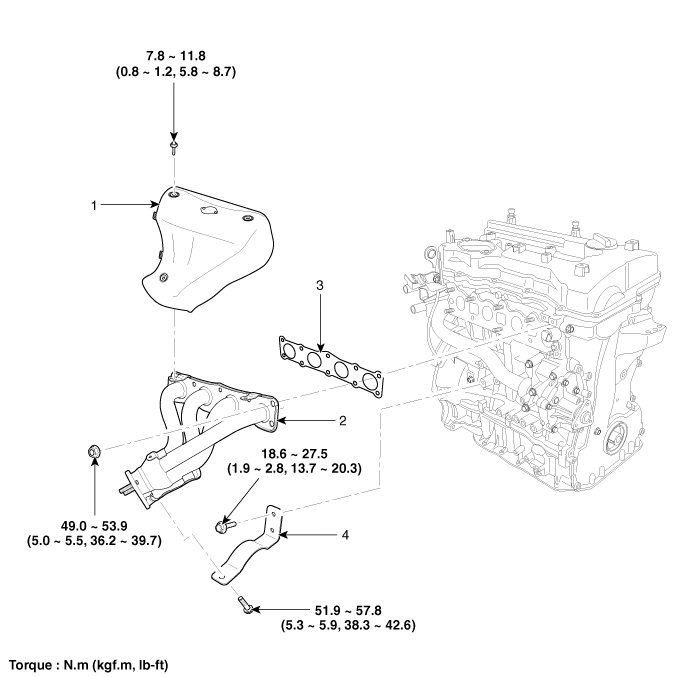

[SULEV]

1. Heat protector
2. Exhaust manifold
3. Exhaust manifold gasket
4. Exhaust manifold stay
