Hyundai Sonata: MTS Antenna. Components and Components Location
Components
Mic. Repair procedures
Inspection
1.
Disconnect the negative(-) battery terminal.
2.
Remove the roof trim.
(Refer to the BD group - "Roof trim")
...
MTS Antenna. Repair procedures
Removal

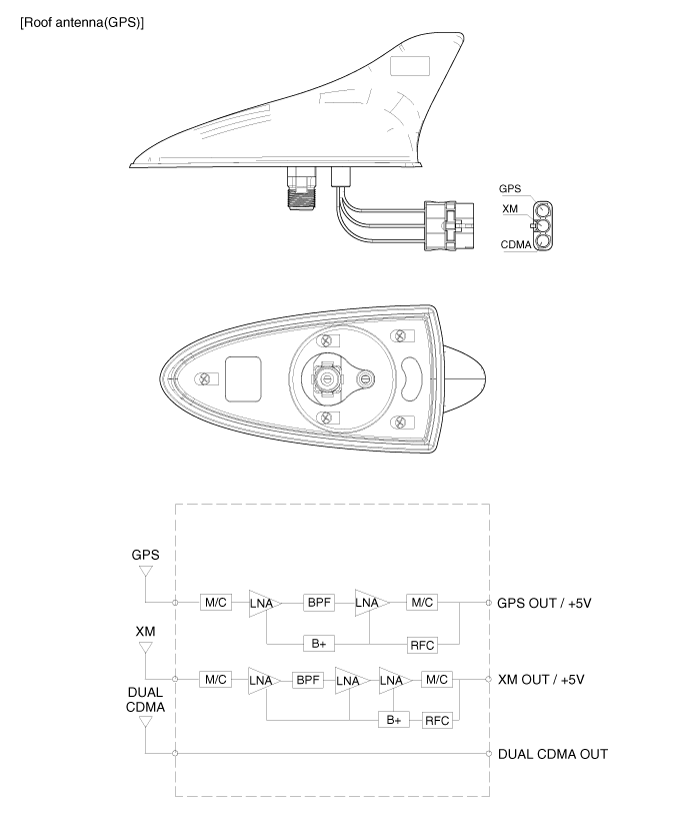

Roof Antenna (GPS)
1.
Remove the rear roof trim.
(Refer to the BD group - "Roof trim")
2.
Disconnect the GPS (A) ...
