Hyundai Sonata: Rear Hub - Carrier. Components and Components Location
Components
|

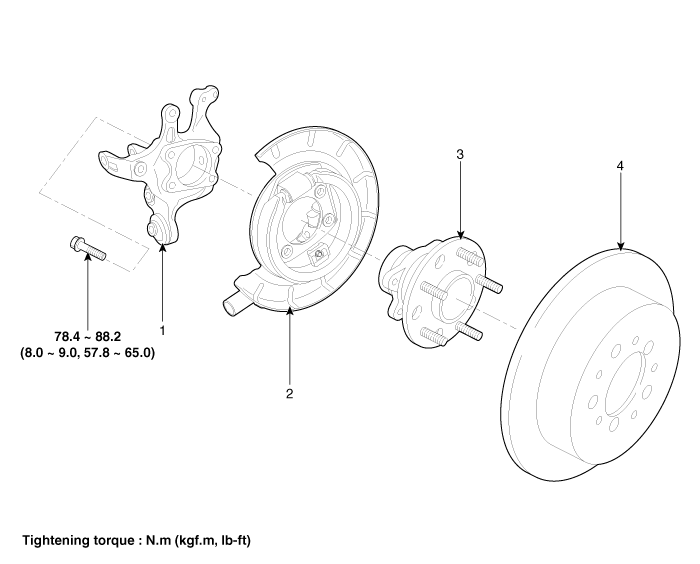

1. Rear Carrier Assembly 2. Parking Brake Assembly |
3. Rear Hub Assembly 4. Rear Brake Disc |
Rear Hub - Carrier. Repair procedures
Replacement
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.
Remove the rear wheel and ...
