Hyundai Sonata: Components and Components Location - Rear Suspension System - Suspension System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Components and Components Location

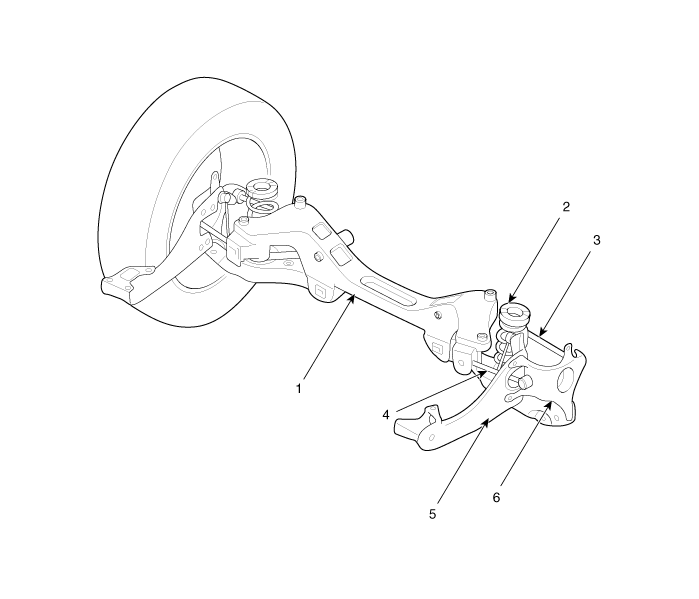

Components

1. Sub frame
2. Coil spring
3. Upper arm
4. Assist arm
5. Trailing arm
6. Rear axle




    Rear Shock Absorber. Components and Components Location
    Components 1. Self locking nut 2. Bracket assembly 3. Bumper rubber 4. Dust cover 5. Shock absorber ...
