Hyundai Sonata: Rear Shock Absorber. Components and Components Location - Rear Suspension System - Suspension SystemHyundai Sonata: Rear Shock Absorber. Components and Components Location

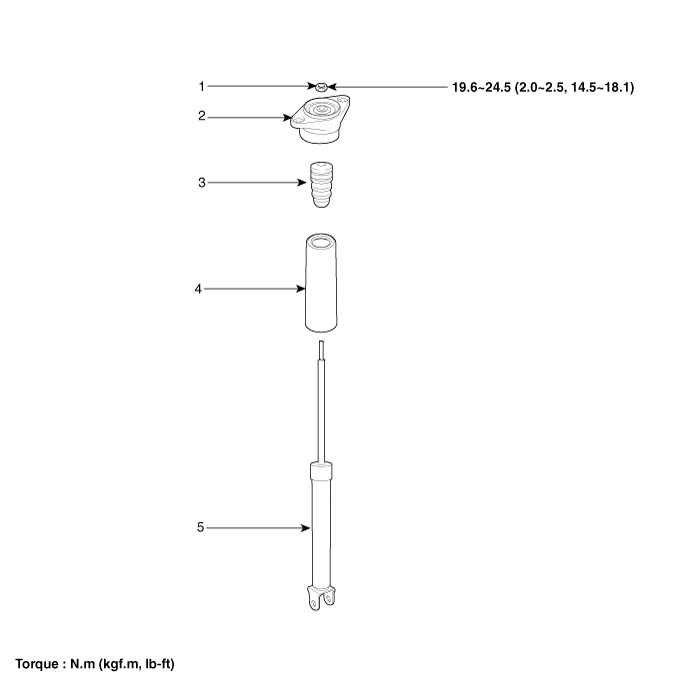

Components

1. Self locking nut
2. Bracket assembly
3. Bumper rubber
4. Dust cover
5. Shock absorber




    Components and Components Location
    Components 1. Sub frame 2. Coil spring 3. Upper arm 4. Assist arm 5. Trailing arm 6. Rear axle ...

    Rear Shock Absorber. Repair procedures
    Replacement 1. Remove the rear wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) ...
