Specifications

Specifications Items Specifications Rated voltage DC 12V Operating temperature range -30°C ~ +80°C (-22 ~ +176°F) ...

Repair procedures

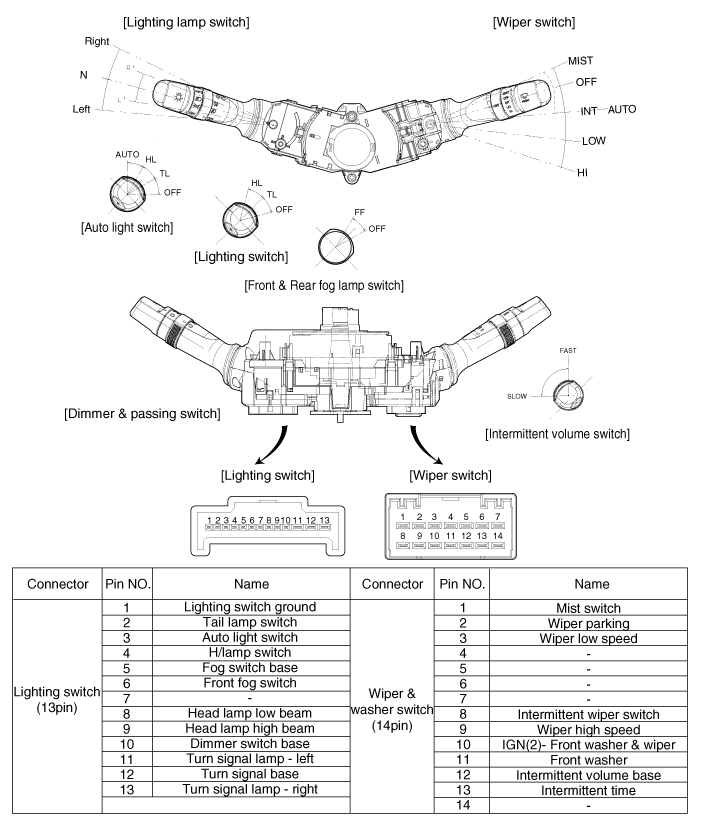

Inspection Lighting Switch Inspection With the multifunction switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replac ...

See also:

Advanced Smart Cruise Control (ASCC) ECU Schematic Diagrams
Circuit Diagram Terminal Function No. Description 1L-CAN [Low] 2L-CAN [High] 20IGN1 21Ground 22C-CAN [High] 23C-CAN [Low] ...

Advanced Smart Cruise Control (ASCC) Unit-Radar Description and Operation
Description The smart cruise control unit is installed on the front right side of the chassis.A radar sensor is embedded in the front section of the unit. This sensor detects vehicles and objec ...
