Hyundai Sonata: Components and Components Location - Indicators And Gauges - Body Electrical SystemHyundai Sonata: Components and Components Location

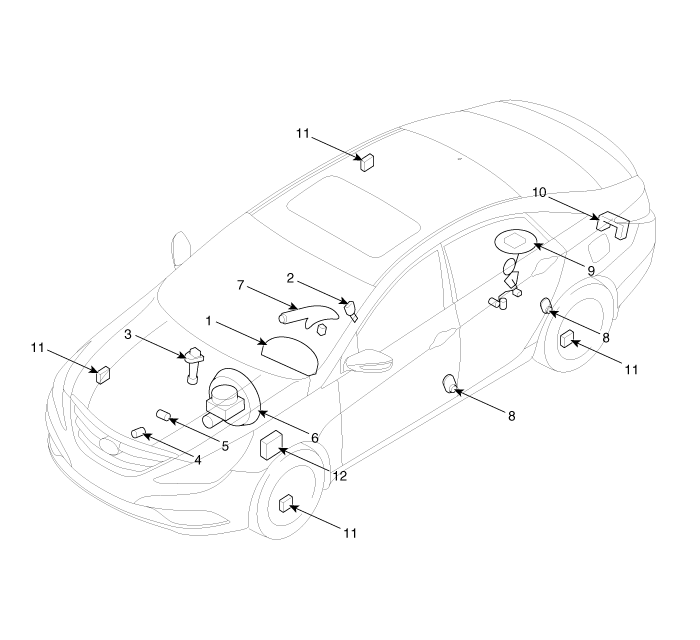

Component Location

1. Instrument cluster assembly
2. Seat belt switch
3. Vehicle speed sensor
4. Engine coolant temperature sender
5. Oil pressure switch
6. Brake fluid level warning switch
 7. Parking brake switch
8. Door switch
9. Fuel gauge sender
10. Trunk lid open switch
11. Wheel speed sensor
12. ABS ECU
