Components and Components Location

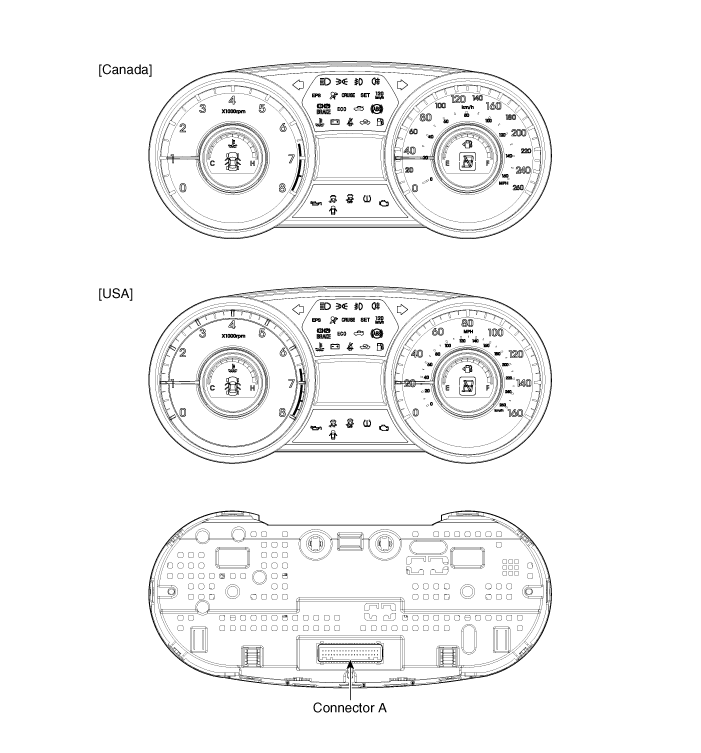

Component Location 1. Instrument cluster assembly 2. Seat belt switch 3. Vehicle speed sensor 4. Engine coolant temperature sender 5. Oil pressure switch 6. Brake fl ...

Instrument Cluster. Description and Operation

Description ECO driving system This system is designed to encourage eco-driving by providing real-time feedback to the driver. The ECO indicator light assists you to drive in the most ...

See also:

High mounted stop light replacement
1. Set the front seatback to the upright position and if necessary, slide the front seat forward. 2. Pull up the rear seat cushion. 3. Remove the nuts under the seat connecting each side o ...

Instrument panel fuse replacement
1. Turn the ignition switch and all other switches off. 2. Open the fuse panel cover. 3. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuse ...

Smart key unit. Repair procedures
Inspection Smart Key Unit - Refer to the BE group - inspection / self diagnosis with GDS. Smart Key Switch - Refer to the BE group - inspecti ...
