Hyundai Sonata: Components and Components Location - Power Door Locks - Body Electrical System - Hyundai Sonata YF 2011-2018 Service ManualHyundai Sonata: Components and Components Location

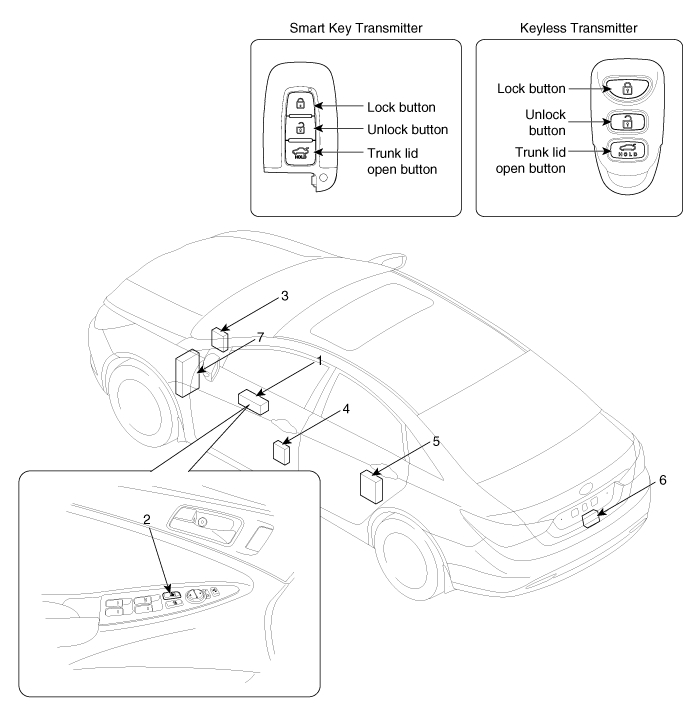

Component Location

1. Driver power window switch
2. Door lock switch
3. BCM (Body Control Module)
4. Front door lock actuator
 5. Rear door lock actuator
6. Trunk lid open actuator
7. SJB (Smart Junction Box)
※ Door lock / Door unlock / Trunk lid open relay


    Power Door Lock Actuators. Repair procedures
    Inspection Front Door Lock Actuator Inspection 1. Remove the front door trim. (Refer to the BD group - "Front door") 2. R ...
