Hyundai Sonata: ETC (Electronic Throttle Control) System. Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: ETC (Electronic Throttle Control) System. Schematic Diagrams

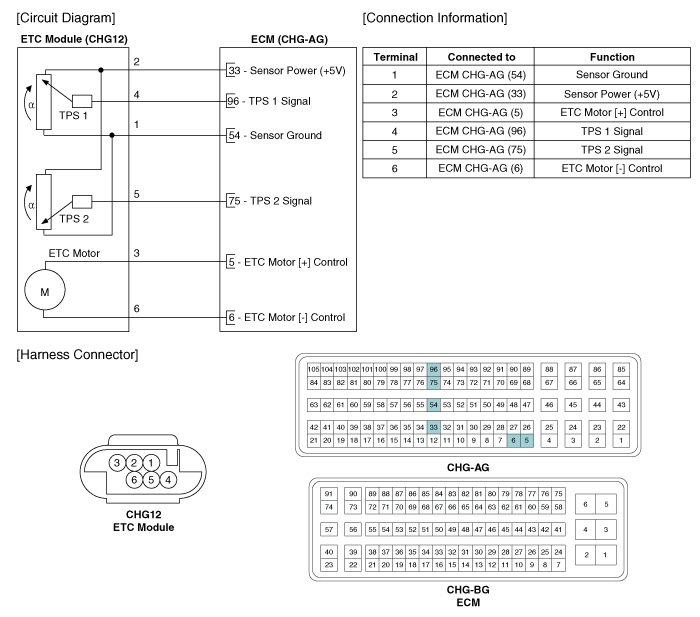

Circuit Diagram


    ETC (Electronic Throttle Control) System. Specifications
    Specification [Throttle Position Sensor (TPS)] Throttle Angle(В°) Output Voltage(V) TPS1 TPS2 0 0.0 5.0 ...

    ETC (Electronic Throttle Control) System. Repair procedures
    Inspection Throttle Position Sensor (TPS) 1. Connect the GDS on the Data Link Connector (DLC). 2. Start the engine and measure the output v ...
