Hyundai Sonata: Positive Crankcase Ventilation (PCV) Valve. Description and Operation

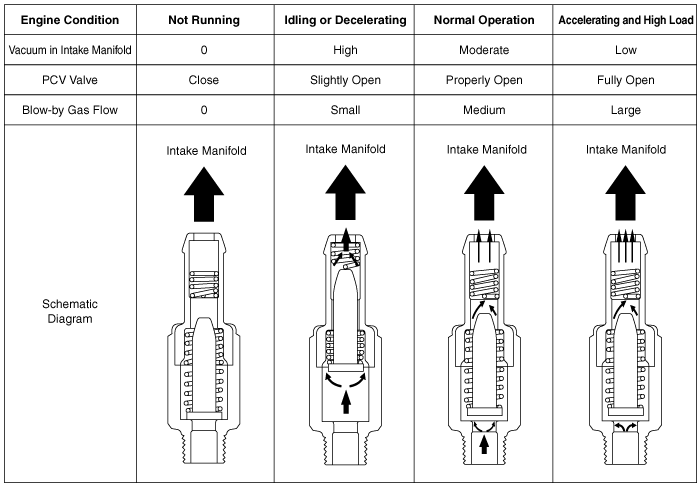

Operation Principle
Repair procedures
Inspection
1.
After disconnecting the vapor hose from the PCV valve, remove
the PCV valve.
2.
Reconnect the PCV valve to the vapor hose.
...
Positive Crankcase Ventilation (PCV) Valve. Repair procedures
Removal
1.
Disconnect the vapor hose (A).
2.
Remove the PCV valve (B).
Inspection
1.
Insert a thin ...
