Inspection

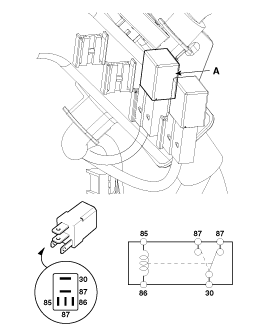

Power Relay Test (Type B)
Check for continuity between the terminals.
A : Two turn unlock relay
1.
There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.
2.
There should be continuity between the No.30 and No.87 terminals when power is disconnected.
