Hyundai Sonata: Trip Switch. Schematic Diagrams - Indicators And Gauges - Body Electrical System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Trip Switch. Schematic Diagrams

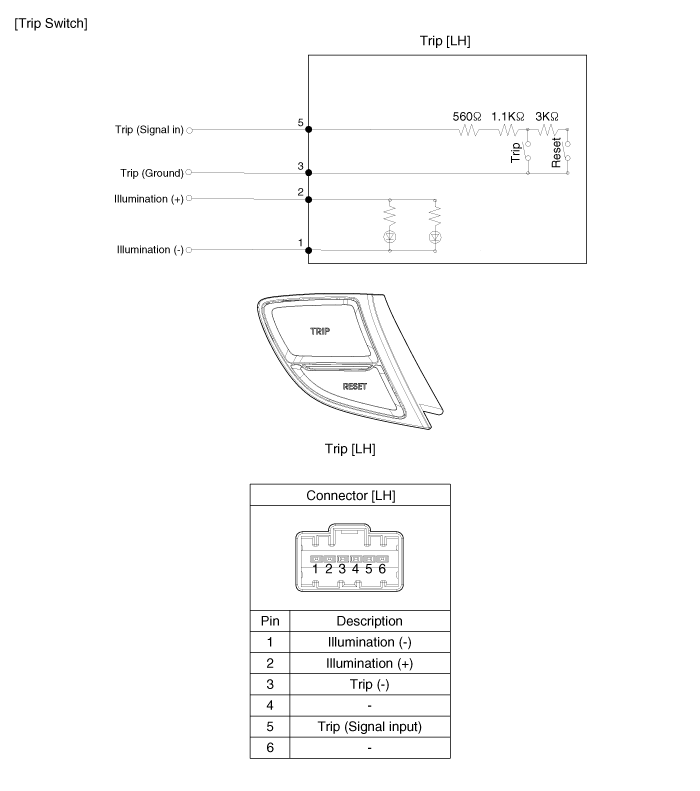

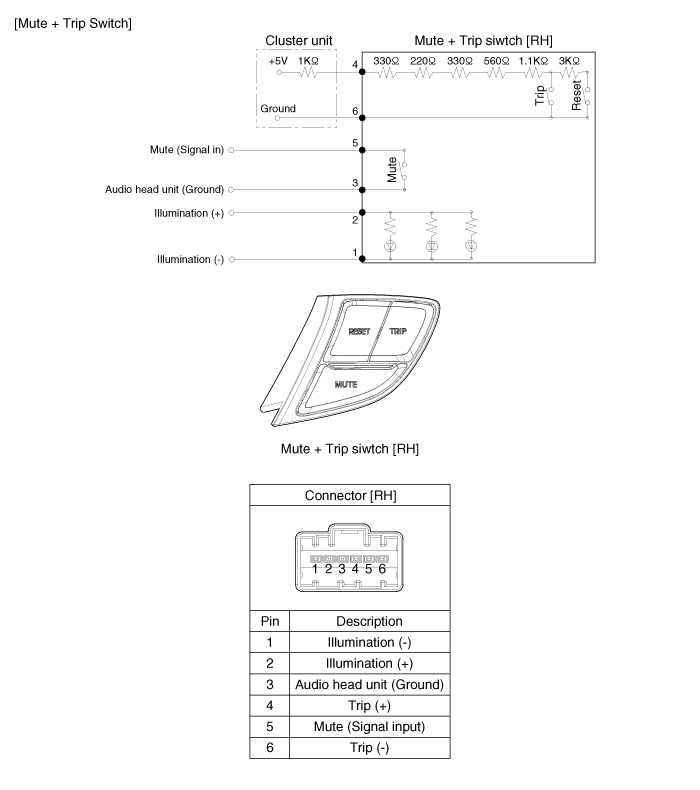

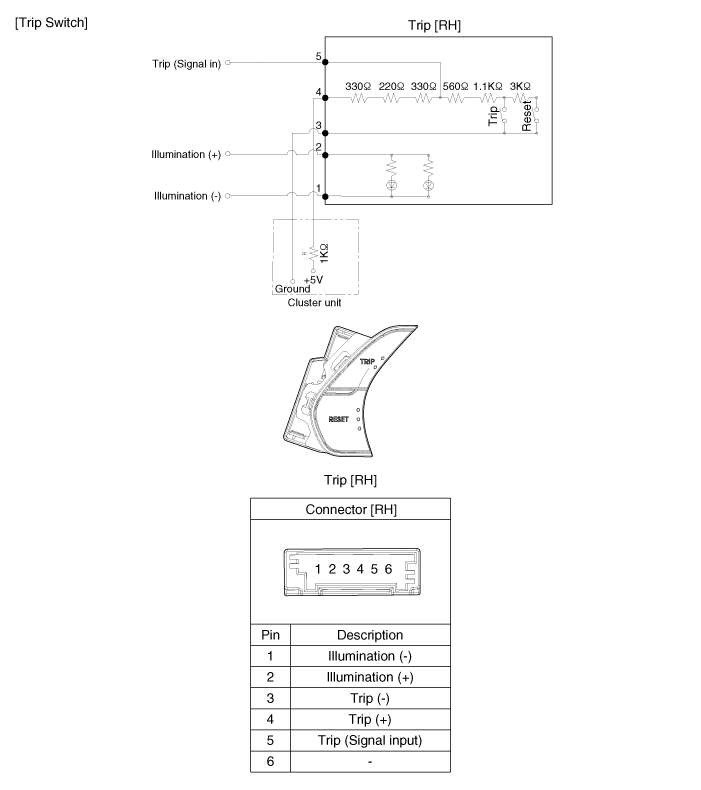

Circuit Diagram
