Hyundai Sonata: Balance Shaft & Oil Pump. Components and Components Location - Lubrication System - Engine Mechanical SystemHyundai Sonata: Balance Shaft & Oil Pump. Components and Components Location

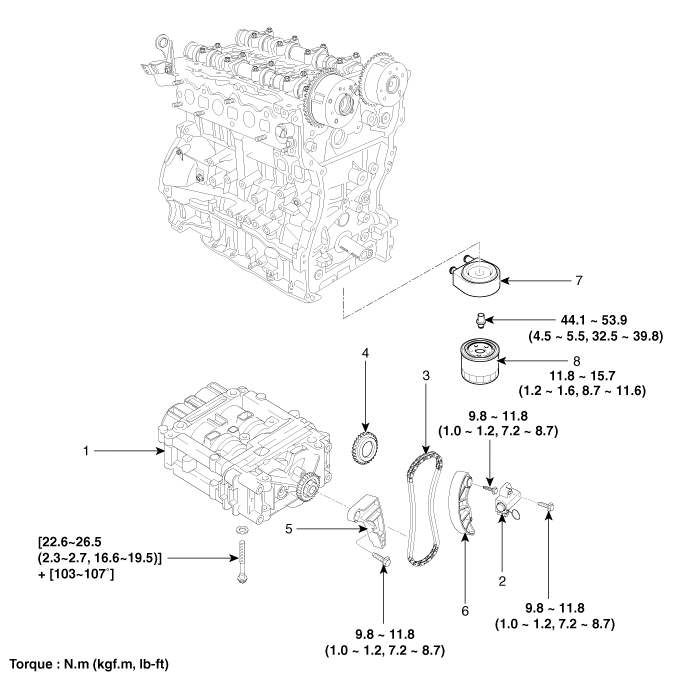

Components

1. Balance shaft & oil pump assembly
2. Balance shaft chain tensioner
3. Balance shaft chain
4. Balance shaft chain sprocket
5. Balance shaft chain guide
6. Balance shaft chain tensioner arm
7. Oil cooler
8. Oil filter


    Engine Oil. Repair procedures - Revised
    Oil And Filter Replacement • Prolonged and repeated contact with mineral oil will result in ...

    Balance Shaft & Oil Pump. Repair procedures
    Removal 1. Remove the timing chain. (Refer to Timing system in this group) 2. Install a stopper pin (A) after compressing the balance ...
